Motorized TV Actuator Lift Bracket 32" - 46"
Motorized TV Actuator Lift Bracket



Alternative Views:
All orders are custom built.
Our Price: $2,600.00


Availability:: Usually Ships in 3 to 5 Days
Product Code: FA-MOTORIZED-LIFT-3246

Description

This stunning new actuator based TV lift mechanism for 32" -46" flat panels is ideal for mounting in cabinets, floors or at the foot of the bed. The near silent motor system, combined with the most height efficient design on the market makes for a valuable addition to our range. A push up lid mechanism and the limitless width design ensure the TV Actuator Lift has a simple and quick installation and easy fitting.

  • Push up mechanism for lid
  • Full Cable Management
  • Compact design for minimum spatial requirements
  • Only 55mm(2.2") of height above television required
  • Near silent motor system

Warning: It is the responsibility of the installer to warn all potential end users of the dangers of interfering with mechanisms during operation. It is important to check the screen dimensions before planning to mount in any kind of cabinet. Child safety is of utmost importance, watch pinch points during operation keeping body and fingers away from moving parts.

Cabinet Not Included
Features
Fits TV sizes: 32" - 46"
VESA 200x200mm - 400x400mm
Color Black
Mechanism lift travel: 26.6" (675mm)
Max Screen Height 25.39 "
Max Weight 110 lbs

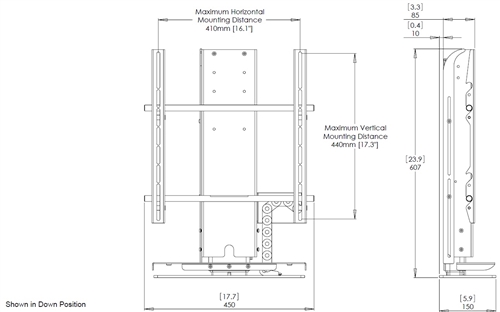

Dimensions closed position: 23.9" h x 17.07" w x 3.3" d (607 x 450 x85mm)

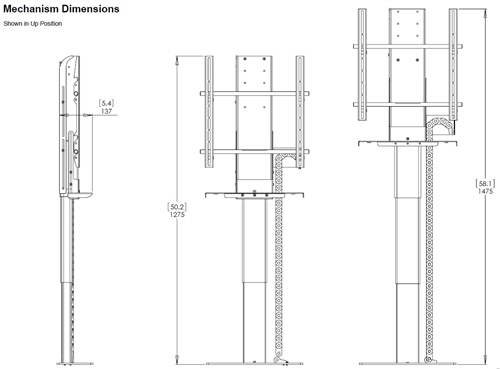

Maximum height raised: 58.1" 91475mm)
Base depth: 5.4" (137mm)
Control Options Contact Closure / IR
Movement Type Motorised
Cabinet: Not Included
