Double Arm Swivel TV Bracket for 32" - 65" (Extends 49")
Swivel TV Bracket extends 49 in



Alternative Views:
Our Price: $1,850.00


Availability:: Usually Ships in 2 to 3 Weeks
Product Code: FA-DA-49EXT

Color

Choose:


Description

This precision crafted Double Arm bracket is a custom made to order manual TV bi directional swivel bracket that allows a screen to be pulled forward and rotated (swivels) 90 degrees in either direction left or right. This double arm TV bracket is the ideal problem solver when typical brackets will not work. Our custom department customized the length of each arm to ensure the solution offered exactly matches the mounts specifications.

Solid steel construction holds display securely
Bi-Directional Swivel up to over 90 degrees in either direction depending on needs
Custom cut arms to any length up to 500mm per arm
Brushed Aluminum caps for superb aesthetic finish
Any color of arms available upon request

Note: Please allow 2 -3 weeks for custom building time.
Additional Notes:
1.Due to extreme extension you can expect the bracket to have some sag. The wall has to structurally reinforced for the load being applied due to long extension and weight of the TV.
2. The wall plate dimensions are 8.7" w x 26.4" h (220mm x 770mm)

Warning: End user and installer are responsible for mounting the bracket to a structure that can support the force applied by the weight of the TV on the mount being folded against wall or extended. Attach it to structure that will not allow pullout of mounting hardware for the wall plate to the structure it is attached to. Wall Mount World nor the manufacturer is responsible for the mounting or installation of the product and any equipment attached to the mount to the structure it is attached to in the event of failure.
Features
Fits 32" - 65" TVs
Fits TV types Flat Screen QLED, QLED, LED, LCD
110.2 lbs (50.03kg) Weight capacity
Max mounting pattern: 600x400mm
VESA mounting patterns: 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 500x200mm, 500x300mm, 500x400mm, 600x200mm, 600,300mm, 600x400mm

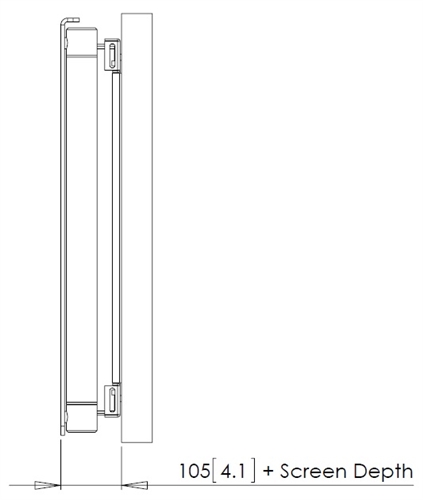

4.1" (105mm) Minimum Extension

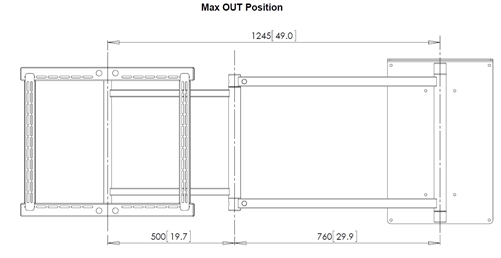

49.6" (1260mm) Maximum Extension
+90/90° degrees Swivel left and right
Tilt None
Mounting surface wood joist, structural wood or structural concrete

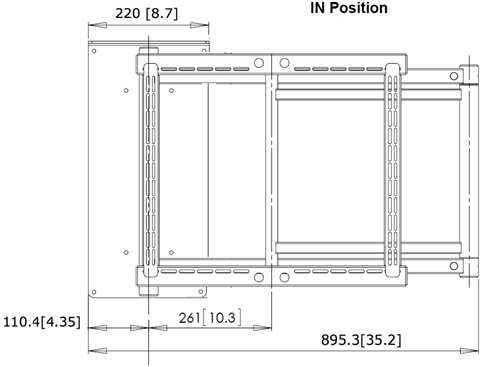

TV offset 10.3" (261mm ) offset from wall plate center to TV center when closed to wall

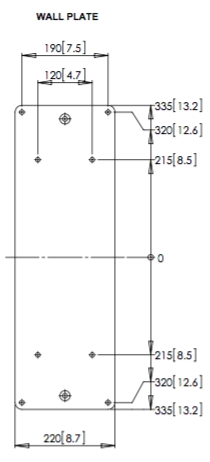

Wall Plate Dimensions: 8.7" w x 26.4" h (220mm x 770mm)

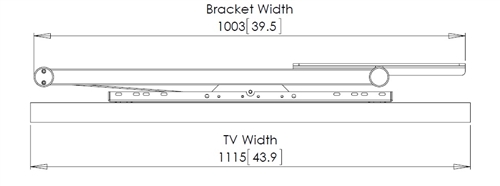

Overall Bracket width collapsed 33.3" (845mm)
Construction: high-grade cold rolled steel
Product finish: scratch resistant epoxy powder coat
Color Black or White
