Architectural Spanning Adapter for 1.5" NPT

Chief CMA366 Architectural Spanning Adapter

Alternative Views:

Our Price: $149.00

Availability:: Usually Ships in 24 to 72 Hours
Product Code: CHI-CMA366-ADAPTER

Description

Technical Drawings, Manuals and Videos

Adapter Overview

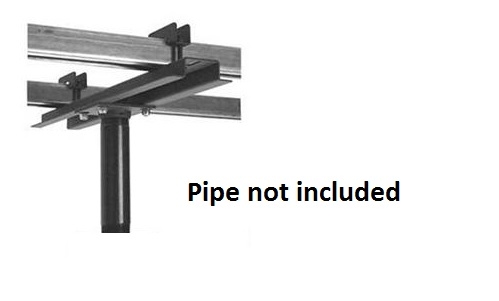

This bracket spans truss systems for easy overhead installation of equipment in buildings and exhibit booths. The bracket is a universal method for quick, easy installation of NPT 1 1/2" pipe to or above a variety of structures. By using any length pipe threaded on both ends, you can extend the height capabilities to meet your needs.

Features

Technical Description

Spans truss systems and provides lateral shift capability
Weight capacity 250 lbs (113.4kg)
Compatible with 1.5" NPT extension columns
Allows cable routing through the column
Span Distance: 5-18" (127-457 mm)
Clamp Range: up to 2" (51 mm) OD or 1.9" (48 mm) square tubing
