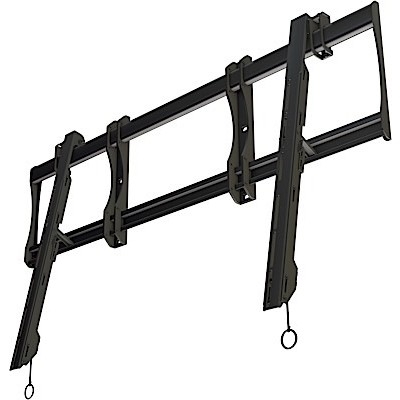

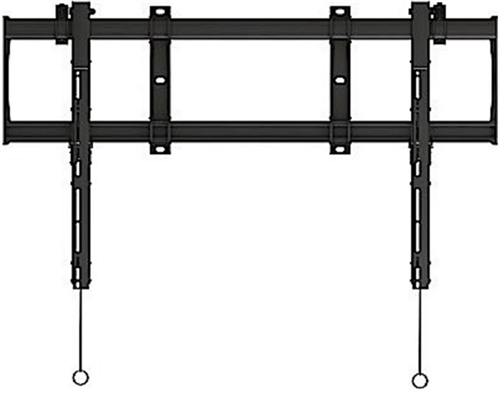

Extra Heavy Duty Flat Wall Mount for Clevertouch 86" UX Pro 2
Clevertouch 86" UX Pro 2 Heavy Duty Flat Wall mount



Alternative Views:
Our Price: $798.00


Availability:: Usually Ships in 24 Hours
Product Code: CR-FLAT-86-UX-PRO-2

Description


Wall Mount Overview

This commercial grade wall bracket with its 400lb capacity is the perfect match for Clevertouch UX Pro 2 86" Touch Screen displays.

Universal design
VESA compatible
Lateral Shift with two independent shift points
Post-installation leveling compensates for uneven ceilings

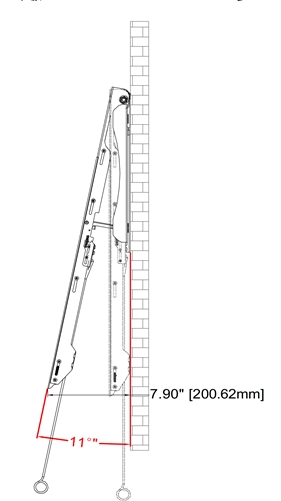

Integrated kick stand and pivot functionality places display in Service Mode for easy wiring and service
Pre-sorted hardware pack
Features

Technical Description

Fits 70" - 100” TVs
Flat Fixed position
400 lbs. (181kg) Capacity

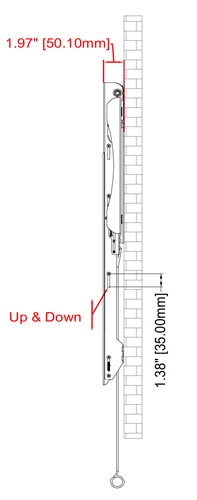

1.97" (31.75mm)Depth from wall
Lateral Shift Varies by screen width

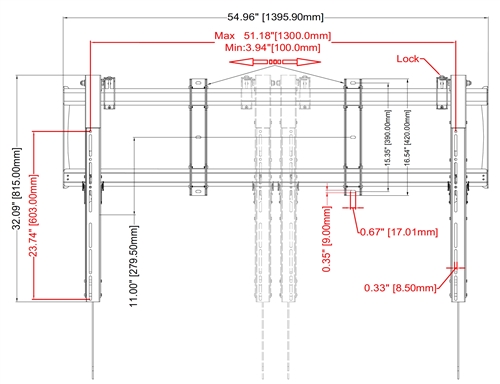

VESA maximum 1300x603mm
Supports the following VESA sizes 200x200mm, 300x300mm,400x400mm, 500x200mm, 500x300mm, 500x400mm, 500x500mm, 600x200mm, 600x300mm, 660x330, 600x400mm, 600x600mm, 800x200mm, 800x300mm, 800x400mm, 800x500mm, 800x600mm, 900x400mm, 900x600mm, 1000x200mm, 1000x300mm, 1000x400mm, 1000x500mm,1000x600mm
+-5 degrees Post Installation Leveling
Wall Plate dimensions 55" x 8.87" (1395mm x 222.25mm)
Wall Studs on 16, 20 and 24" centers
Lower kickstand extension 7.9"
Mounting hardware Included
Color Black
