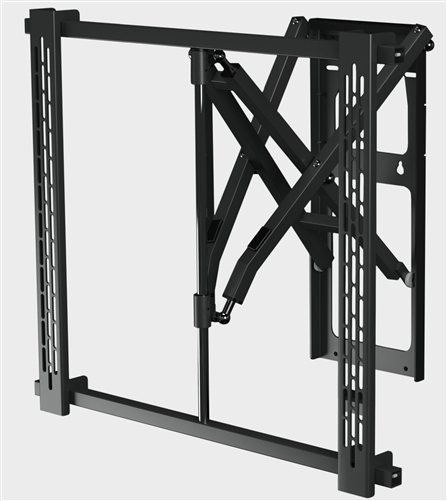

Clevertouch 86" UX PRO Edge Display Custom Swivel Wall Bracket
Clevertouch 86" UX PRO Edge Swivel wall Bracket - Future Automation PS80



Alternative Views:
Our Price: $1,950.00


Availability:: Usually Ships in 2 to 3 Weeks
Product Code: FA-CLEVERTOUCH-UX-PRO-EDGE

Description


Wall Mount Overview

This ultra smooth precision crafted wall bracket allows Clevertouch 86" UX PRO Edge displays to be moved smoothly and effortlessly in either direction. The bracket allows perfect parallel movement and the freedom and flexibility to view your flat screen in a variety of positions, for the ultimate viewing experience.

Mounting bracket requirements:
VESA 800x600mm mounting hole compatible
Support 151.0 lbs (TV weight without stand

Unique Scissor Design allows easy one handed operation
Solid Steel Construction
Bi-Directional Swivel of 32 degrees left right
265lb load capacity

Note:This bracket does not have tilt adjustment.TV will remain just flat.

Features

Technical Description

Fits 80" - 100" Displays
Fits TV types OLED, QLED, LED, LCD and Plasma
265 lbs (120kg) Weight capacity

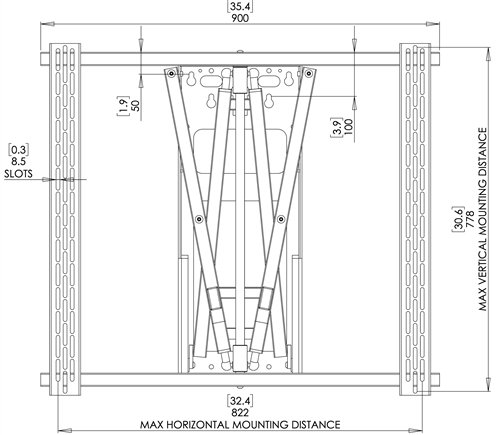

Maximum VESA mounting pattern 900x778mm (32.4" x 30.6")
VESA mounting patterns 400x400mm, 500x200mm, 500x300mm, 500x400mm, 600x200mm, 600x300mm, 600x400mm, 660x330mm, 800x200mm, 800x400mm, 800x600mm, 900x600mm

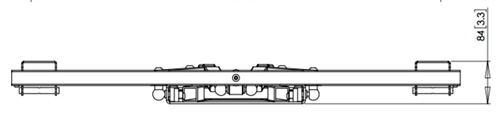

3.3" (84mm) Minimum Extension

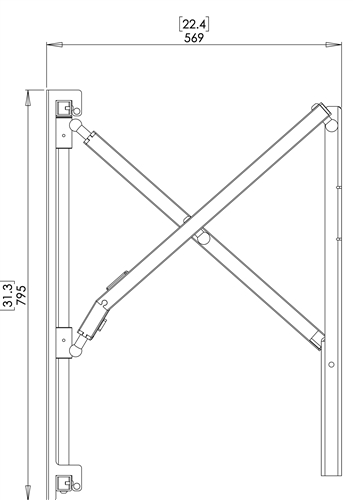

22.4" (569mm) Maximum Extension:

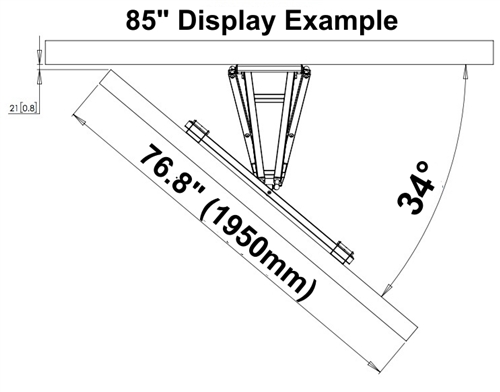

32° Swivel:both left and right
Tilt None
Mounting surface wood joist, structural wood or structural concrete

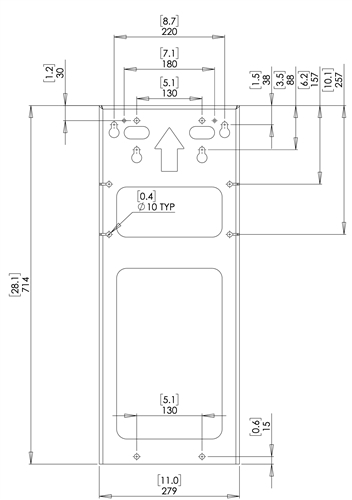

Wall Plate dimensions 11.0" w x 28.1" h (279mm x 715mm)
Color Black
Mounting Hardware Included for attaching to TV, none for wall structure
