Custom Interlocking Dual Wall Brackets for Samsung VM46T-U

Custom Interlocking Dual Wall Brackets for Samsung VM46T-U

Alternative Views:

Our Price: $4,224.00

Availability:: Usually Ships in 4 to 6 Weeks




Wall Mount Overview

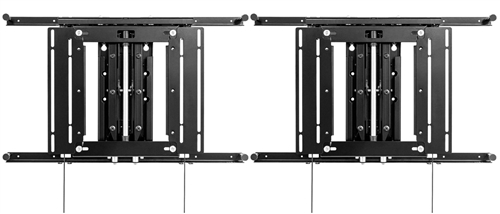

This custom made interlocking wall mount is specifically designed for mounting two Samsung VM46T-U 46" Ultra Narrow Bezel Video Wall. This unique design manual service bracket gives AV installers quick access to the rear of both displays for simple servicing and maintenance without having to remove a display from the wall in indoor marine projects. The custom allows both displays to move together when moved in or out. The swivel system is locked to allow the units to only move straight forward or backward.

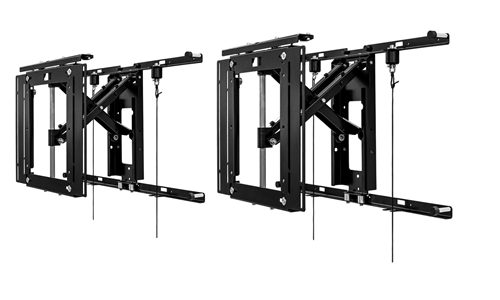

Spring-loaded catches at the top of the bracket can be released using the pull cords by a service technician to allow both brackets to advance together for easy access to display inputs/outputs and rear-mounted AV equipment. (The cords should be attached at the bottom back edge of the screen before pushing the bracket back into place.)

Once servicing is complete, the display can be held in place using the locking system which holds the TV securely against the wall so the display doesn't move.

Adjustable buffers provide stability for the screen corners
Cable routing bosses provided to route the marine catch cords to the outer edges of the screen

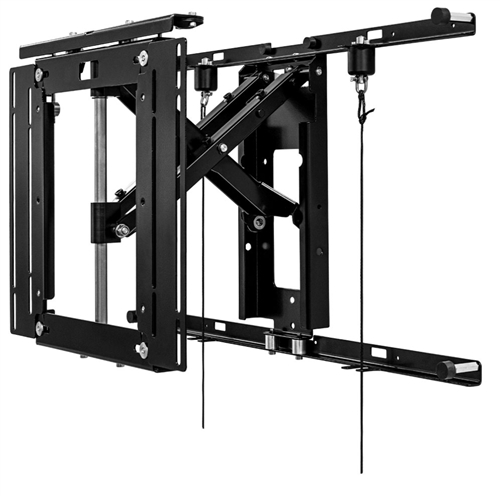

Uniquely designed scissor arm provides safe and smooth movement to access the rear of the display for servicing and maintenance
Minimum depth from wall of around 3.5" makes it one of the thinnest brackets available


Technical Description

Fits dual Samsung VM46T-U displays
Both displays move in Tandem in or out only
Pull cords for lock release for servicing
Side to side swivel feature is locked out no movement
Weight capacity 132 lbs each
Max mounting pattern 600x400mm
VESA mounting patterns 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x400mm
3.7" depth from wall
23-7/16" (595mm) Maximum arm extension
Mounting surface each display dual studs 16" on center
Product finish: scratch resistant epoxy powder coat
Color Black
