Digital Signage Portrait Position Flat TV Wall Bracket 37" - 65"

Digital Signage Flat TV Wall Bracket



Alternative Views:


Taking Pre-Orders
ETA 11/2022

List Price: $180.00
Our Price: $160.00

Availability:: Taking Pre Orders - ETA 11/2022
Product Code: CRIM-DIGITAL-FLAT3765

Color

Choose:



Description

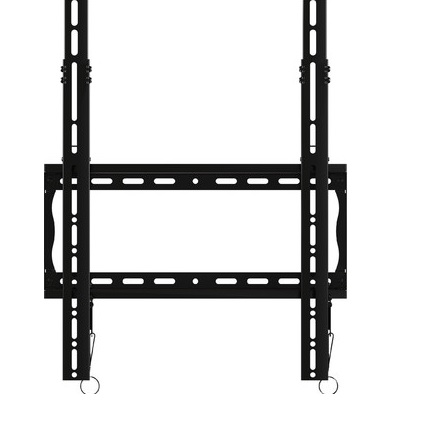

This top-of-the-line digital signage fixed position flat wall mount bracket which is ideal for applications restaurants, hotels, medical office, sports venues or anywhere portrait position mounting is required. This vertically adjustable wall mount in portrait orientation with has a universal hole pattern to fit a wide selection of digital signage flat panel screens. Makes a secure installation quick and easy, simply hang the screen and turn the pre-assembled securing screw to lock in place. Open wall plate design and kickstand feature provides easy access to wiring.

  • Universal design
  • VESA compatible
  • Portrait orientation great for digital signage
  • Low-profile, holds screen close to wall for a clean look
  • Open wall plate allows easy access for wiring
  • Pre-sorted hardware pack for easy installation to wood studs or concrete surfaces included
Features
Fits TV sizes: 37" - 65"
Orientation: Portrait
Capacity 200 lbs
Maximum VESA: 446x601mm
Fits VESA sizes: 75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 200x600mm, 400x600mm
Post Installation Leveling:
+-5
Depth from wall: 1.4"
Mounting surface: wood stud, concrete, cinder block or metal stud (accessory required WMW-STUD-KIT4)
Wall Stud Spacing: Dual studs 16" on center

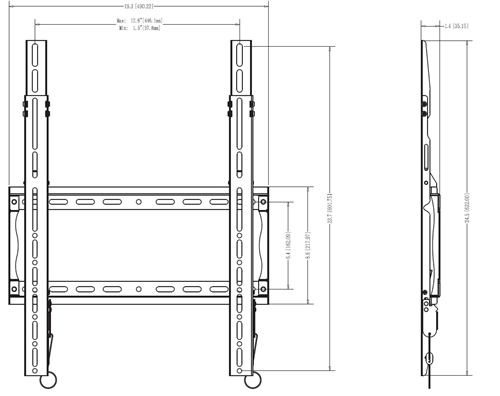

Wall plate dimensions: 19.3" w x 8.6" h
Vertical arm length: 24.5" (622mm)
Mounting Hardware: Included
