Motorized 90 Degree Swivel Wall Bracket for LG OLED77G6P 77" OLED TVS

Electric Swivel TV Wall  Bracket for LG OLED77G6P Future Automation HSE90



Alternative Views:


Our Price: $11,385.00


Availability:: Usually Ships in 12 Weeks
Product Code: FA-MOTORIZED-LG-OLED77G6P

Description

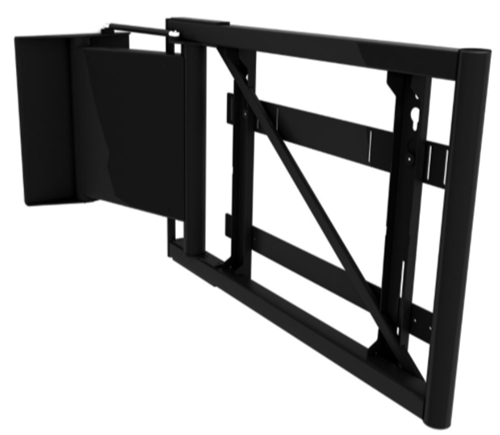

Motorized Wall Mount Overview

A dedicated LG OLED77G6P 77" OLED TV motorized wall mount with full swivel up to 90 degrees swivel in one direction. The superbly smooth action, cable management, and neat mounting plate encapsulate the quality design with functionality and look unlike any other TV Mount on the market. A variety of mount options ensure that individual screens are mounted in the neatest possible way.

Parallel Track for beautifully tight recessed finish
90 degree swivel (on TVs 87.4" wide or less)
Smooth quiet motion
Full Cable Management
Range of preset positions
Magnetic wall covers provide a simple method of hiding all wall fixings.
The mechanism is available with either a clockwise or counterclockwise rotation.

Mounting notes and technical information please read before purchase:
1. The wall structure must be able to support load being applied by the TV mount weighing 135 lbs plus the TV weight of 135 lbs.
2. Wall structure designed for wall plate dimensions 17.7" w x 24.7" h
3. Screens with a width of more than 87.4" (2220mm) will not be able to achieve the full 90 of rotation.
4. The maximum viewing angle of a 102.4" (2600mm) wide screen is 55 .
5. If purchasing mount for any TV other then the one listed please contact prior to purchase so we can conform fit and if a custom adapter plate will be needed.

Features

Technical Description

Fits flat panel displays 65" - 102"
Variable speed electric motor
Programmable IR remote with presets
5.8" depth collapsed
45" Extension from wall to screen center
90° One Way on 87.4" wide or less (Choose clockwise or counter-clockwise)
55° One Way on 87.5" - 102" wide or less (Choose clockwise or counter-clockwise)
Integrated cable management system
Fits VESA sizes 400x400mm, 600x400mm, 800x400mm, 900x600mm
Wall plate dimensions: 17.7" w x 24.8" h
Color Black
240lb capacity
RS232 / Contact Closure / IR (RF Available)
5yr Manufacturer Warranty
Warning: Do not mount into metal studs.
