Future Automation IP-DA3 Outdoor Swivel Wall Bracket for 55" - 60" displays"
Future Automation IP-DA3 Outdoor double arm 33.7in ext swivel wall bracket

Alternative Views:
Our Price: $6,692.00



Availability:: Usually Ships in 2 to 3 Weeks
Product Code: FA-IP-DA3

Mount Color Options

Black (standard color) $0.00
White (Custom Color) [Add $450.00]


Description Technical Drawings, Manuals and Videos


Wall Mount Overview

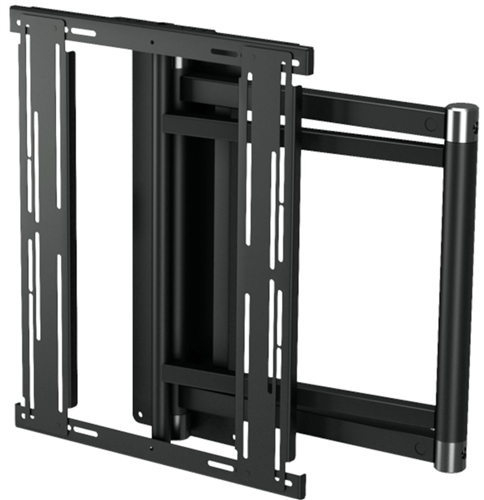

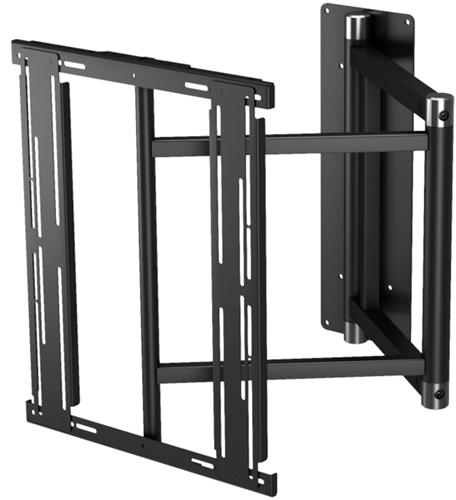

This Future Automation IP-DA3 outdoor double arm bracket is a bespoke, made to order articulating bracket that allows a 55"- 60" screen to be pulled forward and rotated over 90 degrees in either direction. This bracket is the ideal problem solver for when one of our standard sized brackets does not suit. Our design team will customize the length of each arm to ensure the solution offered exactly matches the criteria of the installation.

The IP-DA3 brackets feature stainless steel construction to ensure corrosion protection for outdoor installations.
Features

Technical Description

Fits most 55" - 60" Displays
Stainless Steel construction
Landscape orientation
66lbs (30kg) Weight capacity
Max VESA mounting pattern 400x400mm
Fits VESA mounting patterns: 200x200mm, 300x200mm, 300x300mm, 400x200mm,400x300mm, 400x400mm
4.1" (105mm) Minimum Extension
33.7" (857mm) Maximum Extension
90 degrees swivel both left and right
Non-Tilting
Mounting surface wood joist, structural wood or structural concrete
Single stud mounting
Wall Plate Dimensions 4.8” w x 26.4” h (120mm x 670mm)
Mounting Hardware Included
