Future Automation LSH7 Motorized Cabinet Lift for 75" Displays
Future Automation LSH7 Cabinet Lift for 75" tvs

Alternative Views:
All orders are custom built.
Our Price: $13,000.00


Availability:: Usually Ships in 6 to 8 Weeks
Product Code: FA-LSH7

Description Technical Drawings, Manuals and Videos


Motorized Lift Overview

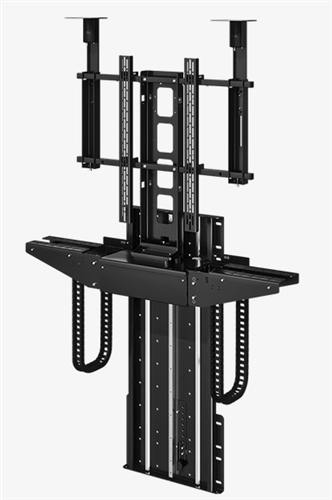

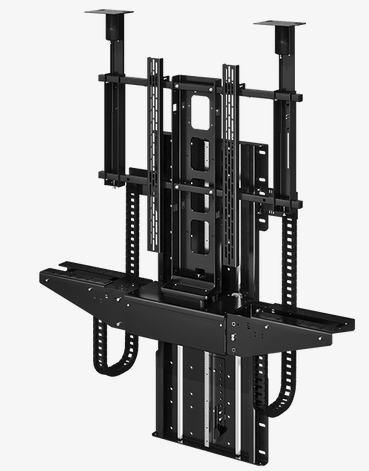

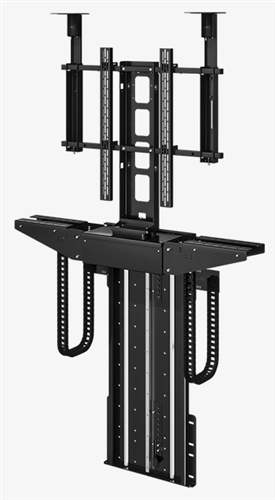

This Future Automation LSH7 motorized 75" TV lift mechanism which is ideal for concealing displays in a cabinet or similar space. Compatible with all major home automation control standards, such as Crestron, AMX and Lutron, the LSH range is perfect for integrating into a smart home environment.

Quick and quiet 24V DC motor
Supplied with IR, Contact Closure and RS232 control options (optional RF available)
Integrated cable management

Warning: It is the responsibility of the installer to warn all potential end users of the dangers of interfering with mechanisms during operation. It is important to check the screen dimensions before planning to mount in any kind of cabinet. Child safety is of utmost importance, watch pinch points during operation keeping body and fingers away from moving parts.
Features
Fits 75" displays
Fits VESA patterns between 200x200mm - 600x400mm
36-1/4" (920mm) Minimum screen height
40-15/16" (1040mm) Max Screen Height
50-13/16" (1290mm) Internal cabinet height
12-1/16" (306mm) depth of mount
220lb (100kg) Residential Max weight capacity
Power Supply 110V or 240V
Power consumption 250W - 500W
Control Options IR remote - RS232 -Contact Closure (RF available)
Movement Type Motorized
Cabinet lid not included
Color Black
