PIC-SIDE3 Picture Slide Mechanism for 65" TVs

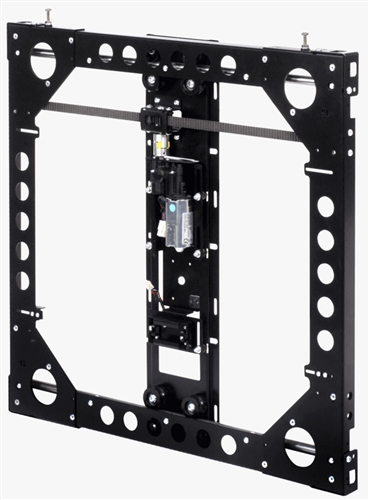

Future Automation PIC-SIDE3 picture slide mechanism for 65" displays

Alternative Views:
Our Price: $8,272.00


Availability:: Lead Time 6 Weeks
Product Code: FA-PIC-SIDE3

Mount Installation

Prior to purchase consult a Professional contactor or installer for possible wall modifications.


Description

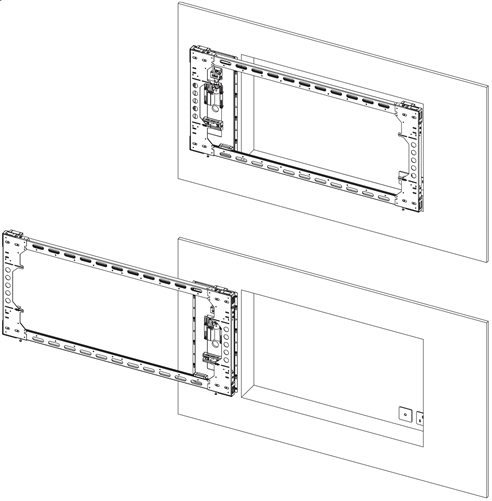

This Future Automation PIC-SIDE3 picture slide mechanism is a horizontal moving panel mechanism that conceals a 65" flat screen TV behind a picture or panel. Ideal for when vertical height is not available, the Picture Side Mechanism drives a panel left or right to conceal and reveal the screen.
Features
Max size displays 65"
22lb (10kg) weight capacity
2.0" (50mm) depth from wall
66-1/2" (1690mm) travel
Power supply required 110V - 240V AC
Power consumption Max 110W
Power consumption standby 3W
IR remote control (optional RS232, Contact Closure)
Product weight 94.8lbs (43kg)
