Future Automation PS55 Swivel Wall Bracket fits 55" - 75" TVs
Future Automation PS55 Bracket

Alternative Views:
Our Price: $582.00


Availability:: Usually Ships in 1 to 2 Weeks
Product Code: FA-PS55

Description Technical Drawings, Manuals and Videos


Wall Mount Overview

This Future Automation PS55 is a super smooth precision crafted wall mount that fits 55" - 75" displays. The bracket allows effortless perfect parallel movement and the freedom and flexibility to view your flat screen in a variety of positions, for the ultimate viewing experience. Perfect for recessing screens in walls for a completely flush finish.

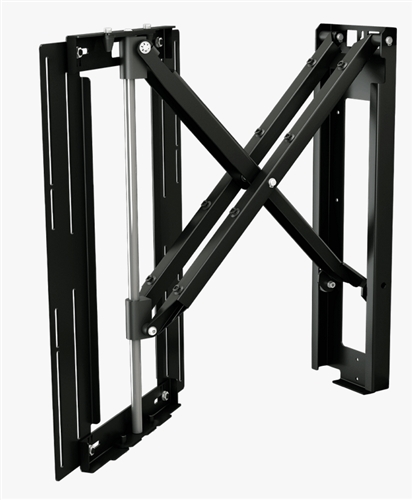

Unique Scissor Design allows easy one handed operation
Hook on/off screen mount enables fast and easy one person fitting, even with larger screens
Solid Steel Construction Holds Screen Securely
Bi-Directional Swivel up to 50 degrees in either direction (based on TV width)
132 lb weight capacity

Features

Technical Description

Fits 55" - 75" displays
Weight capacity 132 lbs (60kg)

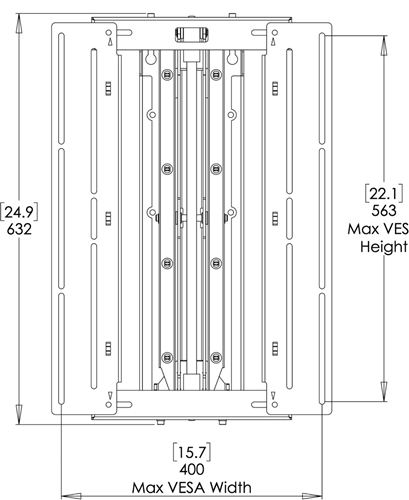

Max mounting pattern 400x400mm (27.0" x 19.3")
VESA mounting patterns 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm
2.0" depth from wall
19.7" Maximum arm extension

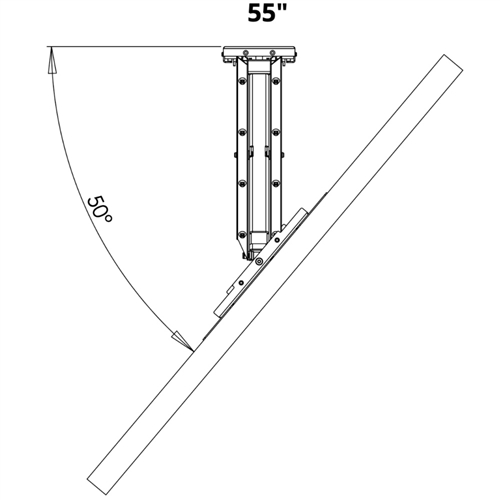

Swivel 55" TV 50 Degrees

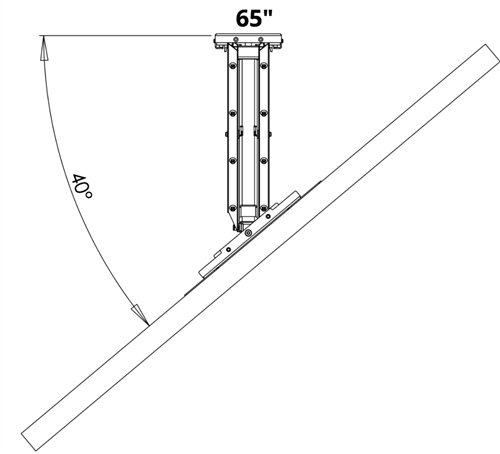

Swivel 65" TV 40 Degrees

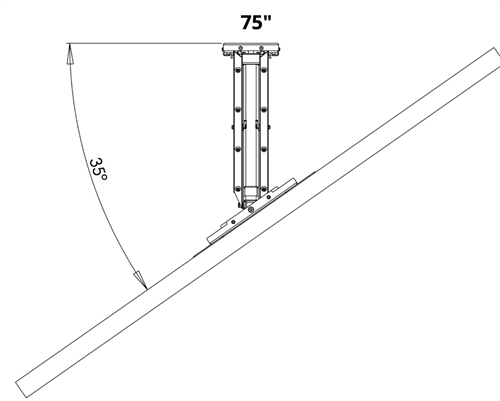

Swivel 75" TV 35 Degrees
Non Tilting
Wall Plate dimensions 6.3" W x 24-3/8" H

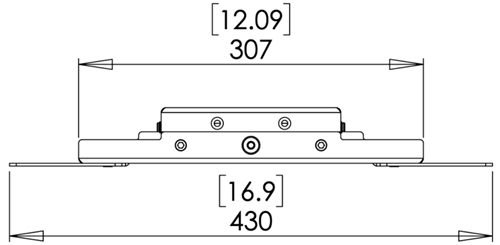

Overall mount dimensions: 16.9" W x 24.9" H
Product finish: scratch resistant epoxy powder coat
Color Black
