Future Automation PS65 Swivel Wall Bracket for 65" - 75" TVs

Future Automation PS65 Swivel Bracket



Alternative Views:


Our Price: $1,100.00


Availability:: Usually Ships in 1 to 2 Weeks
Product Code: FA-PS65

Description


Wall Mount Overview

This Future Automation PS65 wall mount fits 65" - 75" displays. The bracket allows effortless perfect parallel movement and the freedom and flexibility to view your flat screen in a variety of positions, for the ultimate viewing experience. Perfect for recessing screens in walls for a completely flush finish.

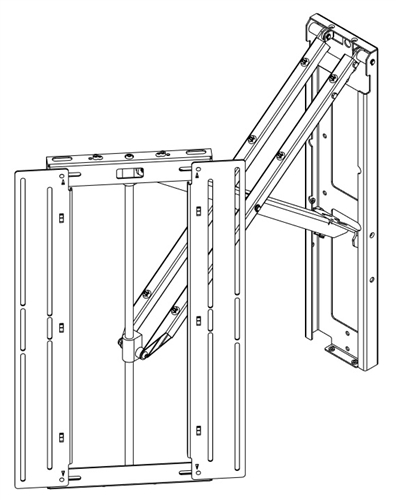

Unique Scissor Design allows easy one handed operation
Hook on/off screen mount enables fast and easy one person fitting, even with larger screens

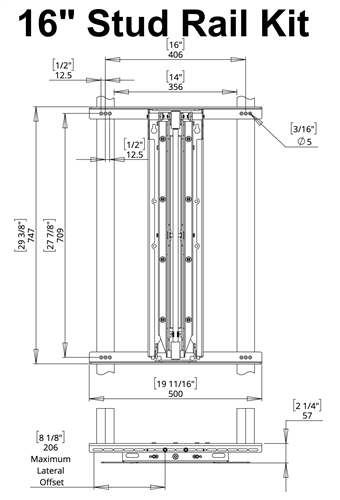

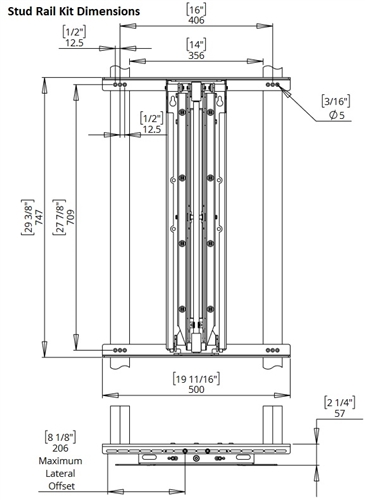

16” stud bay mounting kit included for twin stud mounting, with horizontal bracket offset possible
Solid Steel Construction Holds Screen Securely
Bi-Directional Swivel up to 50 degrees in either direction (based on TV width)
132 lb weight capacity

Features

Technical Descriptions

Fits most 65" - 75" displays
Landscape orientation
132 lbs (119.7kg) Weight capacity

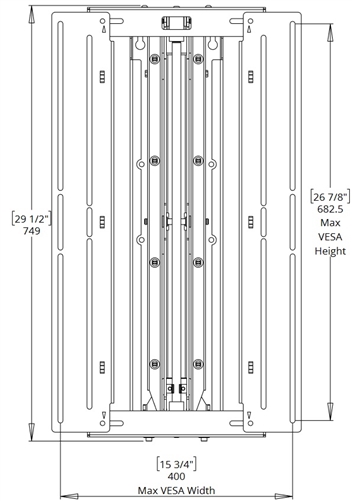

Max mounting pattern 685x490mm (27.0" x 19.3")
VESA mounting patterns 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm

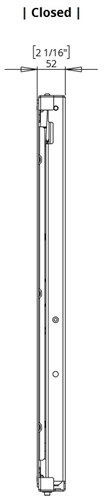

2.0" (52mm) Minimum Extension

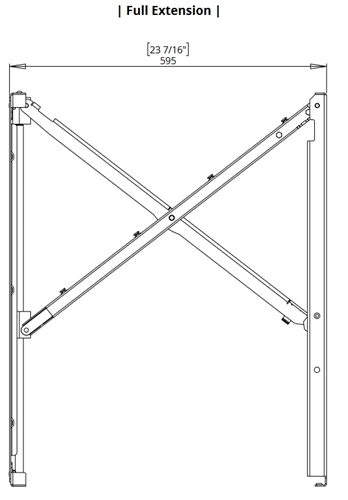

23.4 (530mm) Maximum Extension

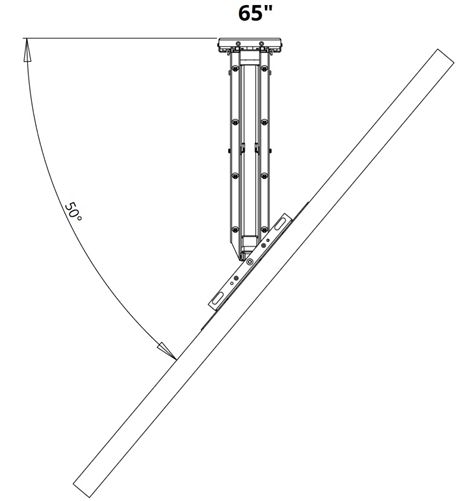

Swivels 65" TV 50 degrees

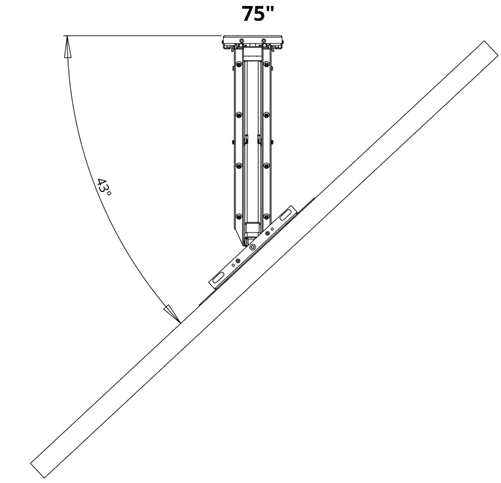

Swivels 75" Tv 43 degrees
Tilt None
Mounting surface wood joist, structural wood or structural concrete
Fits studs 16 inch on center

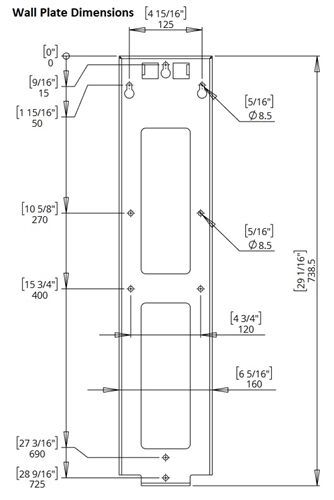

Wall Plate dimensions 19.7" w x 29.4" h
Construction high-grade cold rolled steel
Product finish scratch resistant epoxy powder coat
Color Black
