Mega Heavy Duty Portrait/Landscape Rotation Wall Bracket 80" - 100"

Mega Heavy Duty Portrait/Landscape Rotation Wall Bracket

Alternative Views:

Our Price: $1,290.00

Availability:: Usually Ships in 24 to 72 Hours

The super heavy duty articulating wall mount is for extra large 80" - 100" displays weighing up to 500 lbs. Older or just plain heavy displays are no match for the weight this mount can hold. Fully extended the mount sits 24.5 inches from the wall using heavy duty dual arms and is 8.5 in fully collapsed. These articulating arms allow even the heaviest display to be pulled away from the wall with relative ease for service or alignment. Tilt adjustments of +/- 4 degrees are also included. One of the defining features of the mount is its capability to rotate an entire display 90 degrees - from landscape to portrait. Once you find the perfect angle, you can lock the mount into place to avoid unwanted movement. This is easy to do, even with very heavy displays. The mount is great for digital signage, commercial building, command and control, government, and entertainment applications.

Important Notes:
1. Make sure the structure you are attaching the TV can handle the load of the mount weight of 90lbs plus the TV weight as well as load applied with arm extended from wall.
2. Your TV VESA must be VESA 300x200 or greater. You may contact us for the brackets compatibility with your particular flat screen display.
Fits 80" - 100" Large displays
Rotate Portrait and Landscape
500lb (226.80kg) Weight capacity

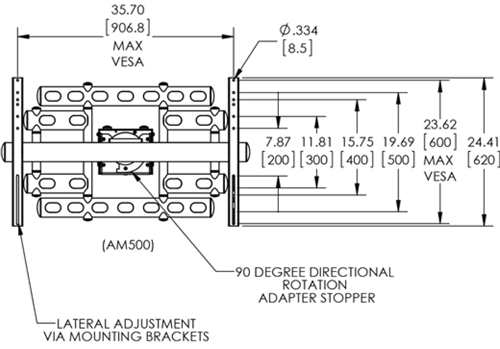

Max mounting pattern 900x600mm

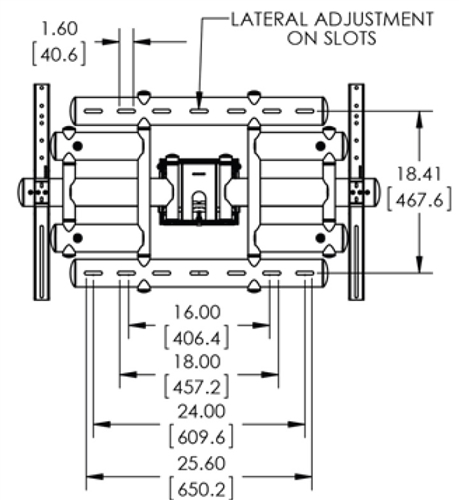

VESA mounting patterns 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm, 800x400mm

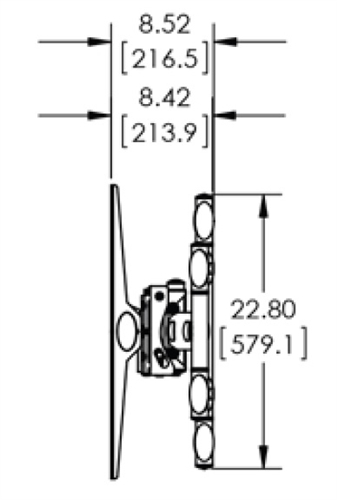

8.52 (216.4mm) Depth from wall
24.5 (622.3m) Max extension
10 degree swivel left and right
+4/-4 Tilt
Rotation 90 Portrait or Landscape (No tools required)
Mounting surface wood stud, concrete or cinder block
Stud spacing dual stud 16 on center
Color black
Mounting hardware Included
Warranty 5-years
Mount weight without display 90.15 lbs
