Precision Crafted 40deg Swivel Wall Bracket for LG OLED65C1PUB
LG OLED65C1PUB Effortless Swivel wall Mount

Alternative Views:
Our Price: $612.00


Availability:: Usually Ships in 1 to 2 Weeks
Product Code: FA-LG-OLED65C1PUB

Description Technical Drawings, Manuals and Videos


Wall Mount Overview

This custom precision made effortless swivel wall mount fits LG OLED65C1PUB 65" C1 Series TVs. The bracket allows effortless perfect parallel movement and the freedom and flexibility to view your flat screen in a variety of positions, for the ultimate viewing experience.

VESA compatible
Scissor design allows easy one handed operation
16” stud mounting kit
Solid Steel Construction
Bi-Directional swivel 40 degrees both left and right
132 lb weight capacity

Note: This mount does not tilt.
Features
Fits 55" - 75" displays
Landscape orientation
Weight capacity 132 lbs (60kg)
Max mounting pattern 400x400mm (15.7" x 15.74")
VESA mounting patterns 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm
2.0" depth from wall
19.7" Maximum arm extension

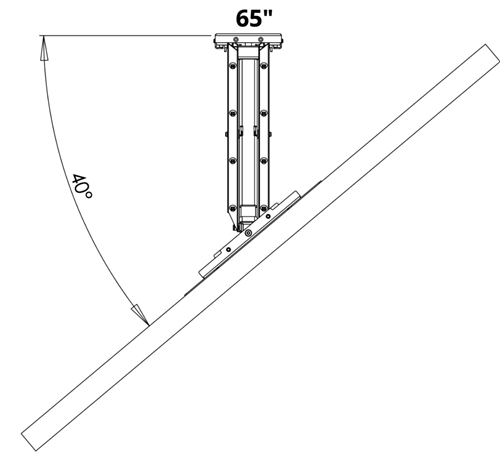

40 Degree swivel left right
Non Tilting
Mounting surface dual studs 16" on center

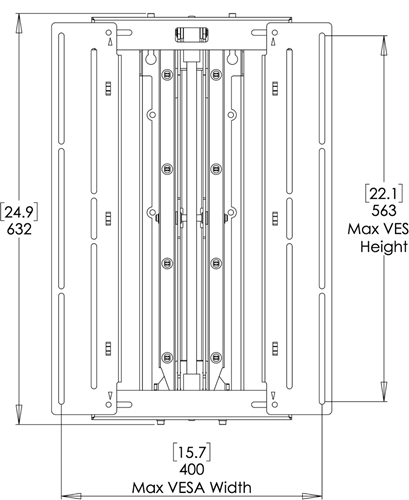

Overall mount dimensions: 24.9" H x 16.9" W
Product finish scratch resistant epoxy powder coat
Color Black
