Motorized Drop Down Ceiling Bracket for 75"- 80" TVs
Motorized Flip Down Ceiling TV Bracket

Alternative Views:
Custom Made 8 - 9 Weeks
Our Price: $13,195.00


Availability:: Usually Ships in 6 to 8 Weeks
Product Code: LIFT-MOTORIZED-CEILFLIP-150

Description

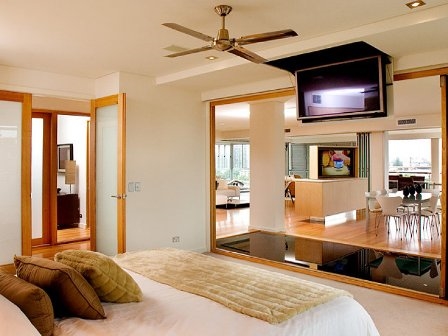

This custom made to order Motorized flip down ceiling mount bracket fits most 75" - 80" flat screen TVs that weigh under 150 lbs. The lift can specifically accommodate TVs that are 72" wide by 42" high (outside dimensions). This is the perfect mount when it is used for ceiling installations in the home or office to keep the TV hidden above when not in use.

The closed top design of the mounting bracket allows for TVs up to 3.5" when there is a ceiling above otherwise up to 5" TV depth for open design above without any structure for mount to recess back to up position.

90 degree swing travel (adjustable by limit switches)
Light Weight Aluminum Construction
Remote and Switch Controlled
Automatic TV On/Off
Unobstructed Viewing Angles
Quiet Operation
Cable Protection

Notes:
1. The bracket when mounted will show metal framing and parts. For a nice clean look installed it will require trim around all four sides of frame and on lid to conceal the TV and overhead structure when closed.

2. Maximum TV weight capacity is 150 lbs. If your TV weighs more than 150 lbs or not sure email us your make or model to confirm fit or to custom make the correct mount for you.
Features
Fits 75" - 80" Displays
Maximum Swing Travel Angle 90° (adjustable by limit switches)

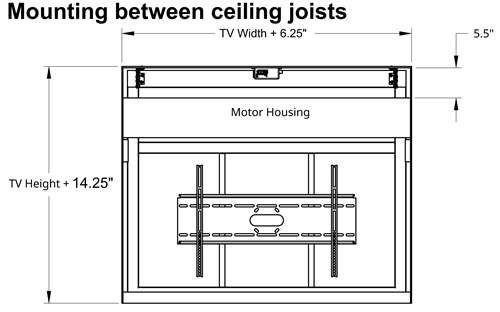

Joist Framing Dimensions TV width + 6.25 / TV height +14.25"
Suspended Ceiling Framing Dimensions TV width + 8.0" / TV height +14.25"

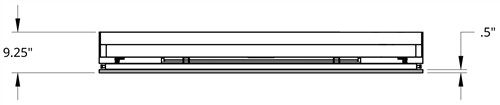

9.25" Mount depth
150 lbs. Maximum TV Weight Rating
Voltage/Amps 120v/3.0a
Lift Control RF (radio frequency) remote control, IR (infrared) receiver [compatible with most programmable (all-in-one) IR remotes], wall switch style wired remote control
Frame Material Aluminum
Color Black
Paintable
Manufacturer Warranty 5 years
