Motorized LSM-EFA4 Cabinet Lift Bracket 42" - 50" TVs

Motorized TV Actuator Lift Bracket



Alternative Views:


Cabinet and Lid Not Included
Our Price: $5,336.10


Availability:: Usually Ships in 6 Weeks
Product Code: FA-MOTORIZED-LIFT-LSM-EFA4

Description


Motorized Cabinet Lift Overview

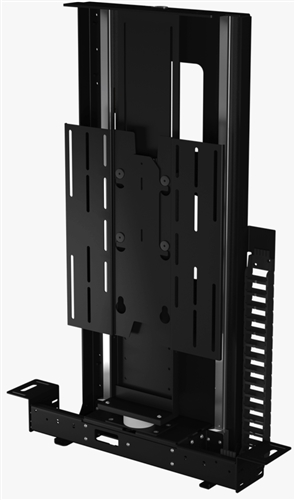

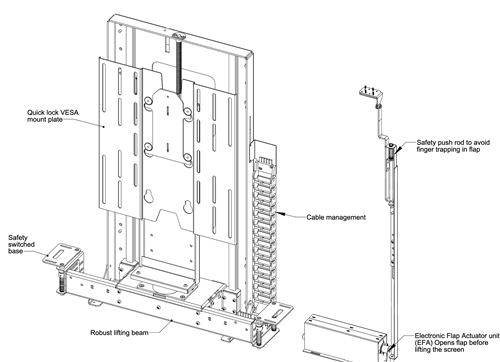

This LSM-EFA4 motorized TV lift mechanism is ideal for concealing 42" to 50" in a cabinet or similar space. Compatible with all major home automation control standards, such as Crestron, AMX and Lutron, the LSM range is perfect for integrating into a smart home environment. Supplied with an electric flap, the lift is ideal to raise and lower the lid independently of the lift motion.
Supplied with IR, Contact Closure and RS232 control options as standard, the entire Lift System Range can be easily installed as standalone units, or easily integrated into the modern smart home. Featuring a robust marine suitable lifting beam, the unit can be also be used indoors on boats or yachts with no need for additional hardware.

Full Cable Management
24DC Motor Suitable for direct DC supply
Compact design for minimum spatial requirements
Near silent motor system
Adjustable up and down positions allow for a precise final setup within the cabinet.


Warning: It is the responsibility of the installer to warn all potential end users of the dangers of interfering with mechanisms during operation. It is important to check the screen dimensions before planning to mount in any kind of cabinet. Child safety is of utmost importance, watch pinch points during operation keeping body and fingers away from moving parts.

Cabinet and Lid Not Included

Features

Technical Description

Fits 42" - 50" displays
VESA 200x200mm - 400x400mm
Control Box dimensions: 5.9" x 8.26" x 1.96" (150x210x50mm)

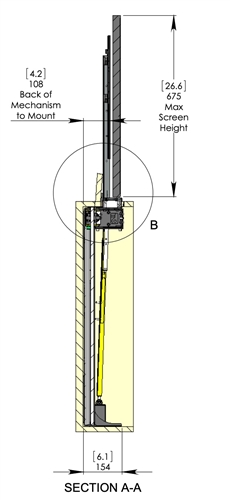

Max Screen Height 26.6" (675mm)
110 lbs (55kg) Max Lift Capacity Residential Use
66 lbs (50kg) Max Lift Capacity for Marine Use

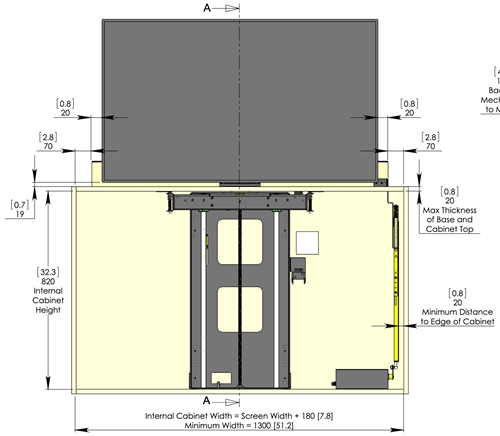

Internal Cabinet Height: 37.4" (950mm)

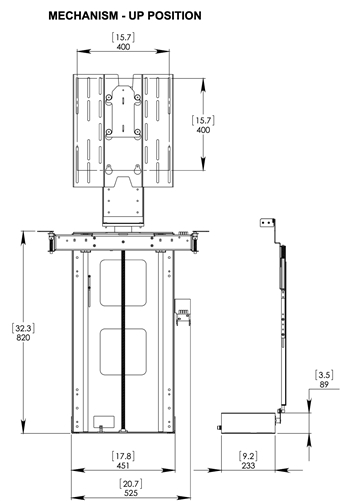

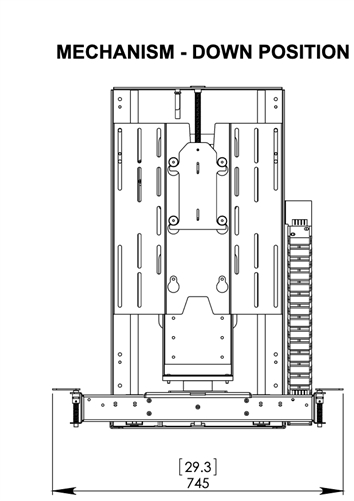

Dimensions closed position: 32.3" h x 29.3" w x 6.1" d
Control Options Contact Closure, IR, RS232
Movement Type Motorized
Power Supply 110V or 240
6-8 Amp draw
Power Consumption: 250W - 500W
Cabinet / Lid Not Included
Color Black
Instructions Included Yes
