Outdoor Rated Tilting Wall Mount Bracket for Samsung 75LST7T 75" TVs

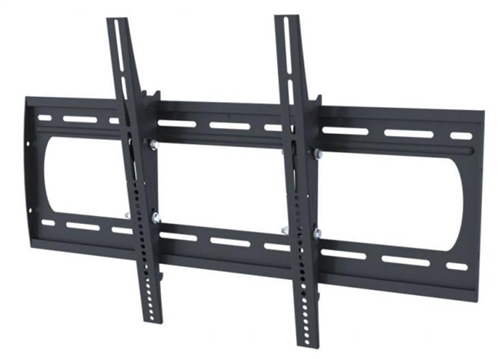

Samsung 75LST7T Outdoor tilting TV wall mount bracket



Our Price: $450.00


Availability:: Usually Ships in 24 to 72 Hours
Product Code: PR-OUTDOOR-SAM-75LST7T

Description


Wall Mount Overview

This Tilting Low-Profile Outdoor Mount fits Samsung 75LST7T 75" TVs. Designed for displays weighing up to 175 lbs, will less than 2” from the wall with 10° of downward tilt. It is constructed with corrosion-resistant material and super durable outdoor powder coat, along with stainless steel hardware to withstand outdoor environments. It also features a locking security barrel, and an open mounting frame for easy access to power sources and cables.

10° of continuous tilt
Post-installation leveling system
Open design for easy cable and electrical access
Built-in lateral shift
Features

Technical Description

Fits most 42in to 75in displays
Corrosion-resistant material
Environmental Certification: RoHS
175 lb (79.4kg) Weight capacity
1.97” (50.0mm) Depth from wall
10° Adjustable tilt
Max VESA mounting pattern: 800x525mm (31.5” w x 20.7” h)
VESA mounting patterns: 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm, 800x400mm
Lateral adjustment varies with screen size
Mounting surface wood stud, concrete, cinder block or metal stud (accessory required)
Wall Plate dimension 33.25" W x 11.34" H
Vertical Arm Height 21.4"
Stud spacing dual studs 16”, 20”, 24” on center
Stainless steel mounting hardware included
Color black
3 year Warranty
