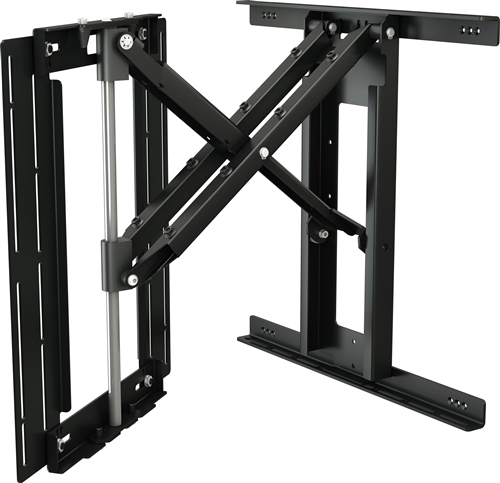

38 Deg Swivel Wall Bracket for Samsung QN55S90DAFXZA
Samsung QN55S90DAFXZA Swivel Wall Bracket - Future Automation PS40

Alternative Views:
Our Price: $592.00


Availability:: Usually ships in 1 Week
Product Code: FA-PS40-SAM-QN55S90DAFXZA

Description Technical Drawings, Manuals and Videos


Wall Mount Overview

This precision crafted custom made wall mount fits Samsung QN55S90DAFXZA 55" S90D OLED TVs and allows them to be moved smoothly and easily in either direction. The bracket allows effortless perfect parallel movement and the freedom and flexibility to view your flat screen in a variety of positions, for the ultimate viewing experience.

Unique Scissor Design allows easy one handed operation
Solid Steel Construction Holds Screen Securely
38 degrees swivel both left and right

Features

Technical Description

Fits 40" - 75" displays
Weight capacity 132 lbs (60kg)
Max mounting pattern 400x400mm (27.0" x 19.3")
VESA mounting patterns 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm
2.2" depth from wall
15.7" Maximum arm extension
38 Degree swivel left and right
Non Tilting
Mounting surface a single stud or stud spacing 4-15/16" apart
Wall Plate dimensions 19-5/8" H x 6-5/16" W
Overall mount dimensions: 20.2" H x 16.9" W
Product finish: scratch resistant epoxy powder coat
Color Black
