19.7" Ext Swivel Wall Bracket for Samsung QN75LS03DAF 75" Tvs
Samsung QN75LS03DAF swivel wall bracket - Future Automation PS55

Alternative Views:
Our Price: $612.00


Availability:: Usually Ships in 1 to 2 Weeks
Product Code: FA-PS55-SAM-QN75LS03DAF

Description Technical Drawings, Manuals and Videos


Wall Mount Overview

This custom made precision crafted wall mount is a perfect fit for Samsung QN75LS03DAF 75" Frame TVs. The Future Automation PS55 bracket allows effortless perfect parallel movement and the freedom and flexibility to view your flat screen in a variety of positions, for the ultimate viewing experience.

Unique Scissor Design allows easy one handed operation
Hook on/off screen mount enables fast and easy one person fitting, even with larger screens
16” stud bay mounting kit included for twin stud mounting, with horizontal bracket offset possible
Solid Steel Construction Holds Screen Securely

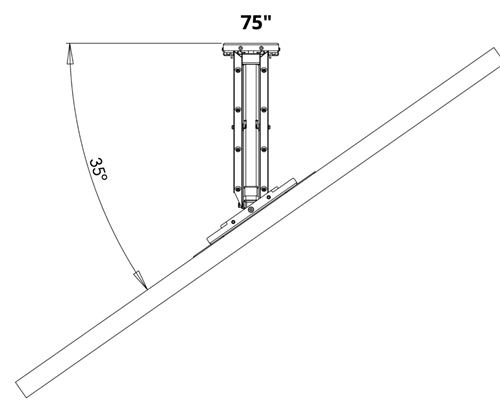

Bi-Directional Swivel 35 degrees in either direction left or right
132 lb weight capacity

Features
Fits 55" - 75" displays
Landscape orientation
Weight capacity 132 lbs (60kg)
Max mounting pattern 400x400mm (15.7" x 15.74")
VESA mounting patterns 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm

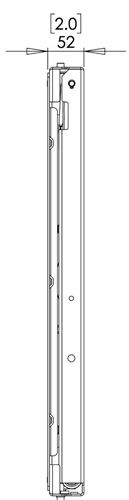

2.0" depth from wall

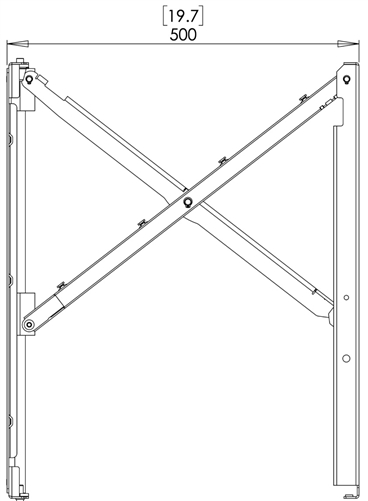

19.7" Maximum arm extension
35 Degrees swivel leftt right
Non Tilting

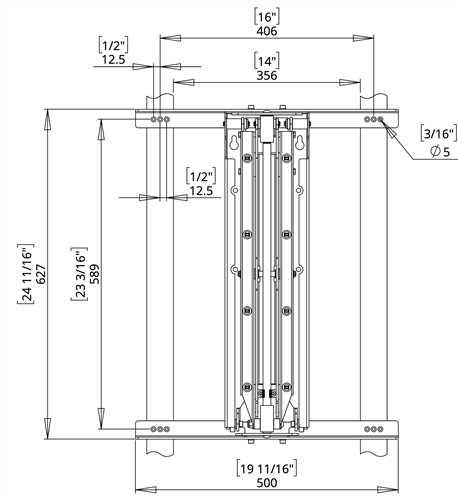

Mounting surface dual studs 16" on center

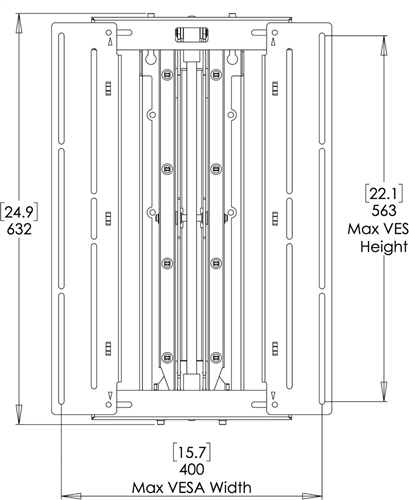

Overall mount dimensions: 24.9" H x 16.9" W
Product finish scratch resistant epoxy powder coat
Color Black
