Outdoor Tilting Wall Mount Bracket for Samsung QN85LST9CAF 85" Terrace Full Sun TVs
Samsung QN85LST9CAF 85in Terrace Full Sun TV Outdoor tilting wall mount bracket

Alternative Views:
List Price: $550.00
Our Price: $450.00


Availability:: Usually Ships in 24 to 72 Hours
Product Code: PR-OUT-SAM-QN85LST9CAF

Description


Wall Mount Overview

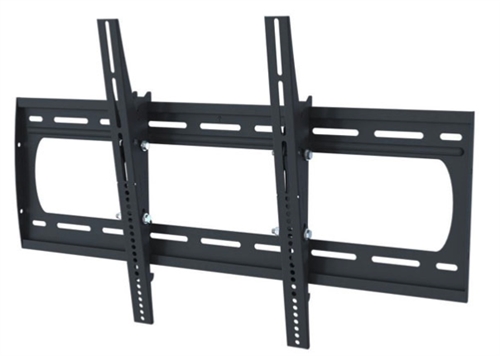

This Tilting Low-Profile Outdoor Mount fits Samsung QN85LST9CAF 85" Terrace Full Sun TVs. The bracket supports displays weighing up to 175 lb less than 2” from the wall with 10° of downward tilt. It is constructed with corrosion-resistant material and super durable outdoor powder coat, along with stainless steel hardware to withstand outdoor environments. It also features a locking security barrel, and an open mounting frame for easy access to power sources and cables.

10° of continuous tilt
Post-installation leveling system
Open design for easy cable and electrical access
Built-in lateral shift
Features

Technical Description

Fits most 42in to 75in displays
Corrosion-resistant material
175 lb (79.4kg) Weight capacity
1.97” (50.0mm) Depth from wall

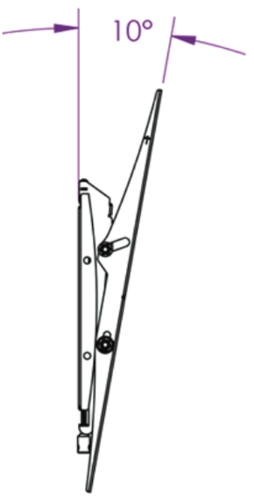

10° Adjustable tilt

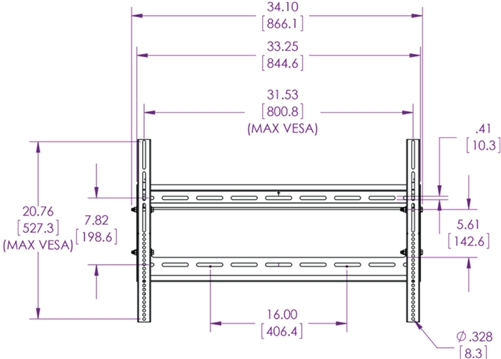

Max VESA mounting pattern: 800x525mm (31.5” w x 20.7” h)
VESA mounting patterns: 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 600x200mm, 600x400mm, 800x400mm
Lateral adjustment varies with screen size
Mounting surface wood stud, concrete, cinder block or metal stud (accessory required)
Wall Plate width 33.25"

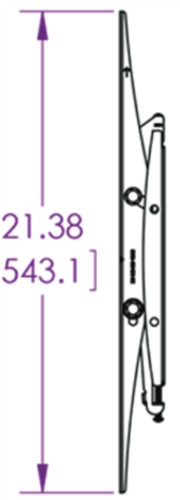

Vertical Arm Height 21.4"
Stud spacing dual studs 16”, 20”, 24” on center
Stainless steel mounting hardware included
Color black
