Samsung UN46F7100 Lockable Tilting TV Wall Mount Bracket
Samsung UN46F7100 Locking Wall Mount -Crimson T46L

Alternative Views:
Our Price: $199.99


Availability:: Usually Ships in 24 to 48 Hours
Product Code: CRIM-LOCK-SAM-UN46F7100

Description

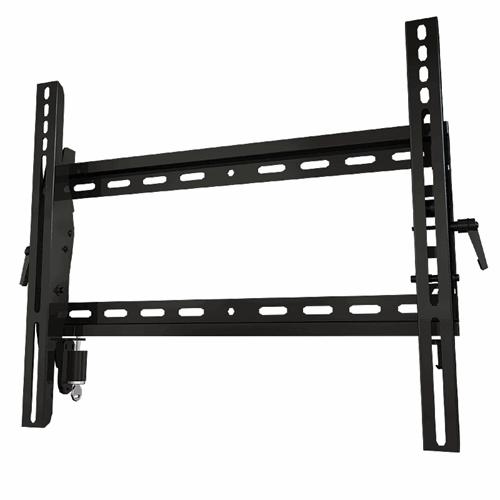

Theft deterrent Crimson T46L locking adjustable tilt wall mount bracket with universal hole pattern to fit a Samsung UN46F7100 46" LED TV. The T46L features a smooth tilt adjustment of 15° forward and 5° back with a locking knob for a variety of viewing angles. Making a secure installation of your Samsung UN46F7100 quick and easy, simply hang your flat panel onto the wall plate and turn the pre-assembled securing screw to lock in place.

Samsung UN46F7100 wall mount requirements:
Fit VESA 400x400mm hole mounting pattern
Support 24.9 lbs.of weight

Security locking vertical arm with 2-keys included in box.


Note: As with any locking device, please put the keys that come with your mount in a safe place that you can find if needed in the future.
Features
Fits Samsung:UN46F7100
Weight capacity:150lb (68kg)
Max VESA mounting pattern:452x401mm
VESA mounting patterns:75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm
Depth from wall:2.2” (55.8mm)
Lateral adjustment:varies with screen
Tilt:+15°/-5°
Security feature:one-touch lock and key system
Mounting surface:wood stud, concrete, cinder block or metal stud (accessory required)
Stud spacing:two studs on 16”centers
Construction:durable high-grade cold rolled steel
Product finish:scratch resistant epoxy powder coat
Color:black
Warranty:10-years
