Recessed In Wall Bracket Flush Mounting Kit for Samsung UN65LS003AFXZA The Frame 65" TVs

Samsung UN65LS003AFXZA The Frame 65 inch TVs - recessed unwell mounting kit hides Samsung one connect box, conceals cables, mounts flush to the wall



Alternative Views:


Our Price: $1,826.00


Availability:: Usually Ships in 1 to 2 Weeks
Product Code: FA-RECESSED-DUALUN65LS003AFXZA

Description


Wall Mount Overview

This one of a kind Samsung UN65LS003AFXZA 65" Frame TV bracket combines function of a articulated TV mount with a dedicated in-wall box to make the perfect service bracket. With the bracket being precision made it allows for effortless, one handed access behind the screen for servicing needs. The recessed in-wall box will not only allow for a flush fit of your TV to hang like a picture on the wall but it will also allow for installation of power supply and connection points to be discreetly concealed behind the TV.

Conceals Samsung one connect box in the wall
Conceals power cords in the wall
Variable bracket mounting depth
Cable management
Cable knockout holes on side of box
Lateral shift

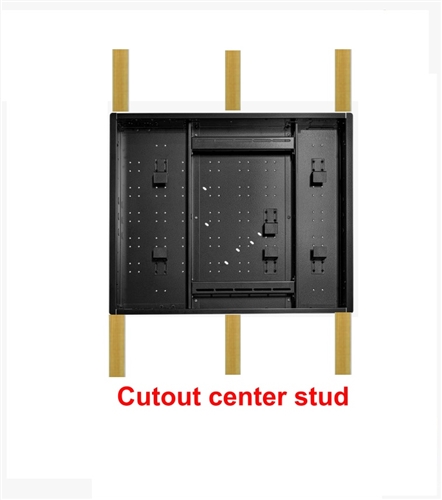

Twin stud in wall box (Center stud cutout)
Metal edge trims offer a cleaner finish around the installed wall box.

Features

Technical Description

Fits Samsung UN65LS003AFXZA Frame TV
Weight capacity 132 lbs (60kg)
Max mounting pattern 400x400mm (27.0" x 19.3")
VESA mounting patterns 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm
Flush to wall when collapsed
23.4" Maximum arm extension
21.5" Maximum arm extension outside wall
43°Swivel left/right
Non Tilting
Mounting surface Between 3 studs 16" on center (center stud cutout)
Mounting Recessed In wall
In Wall Box cutout dimensions 29.9" W x 31.2" h (760mm x 792mm)
Box outer dimensions 31.5" W x 32.2" H (800mm x 817mm)
Product finish: scratch resistant epoxy powder coat
Color Black
Mounting Hardware Included
