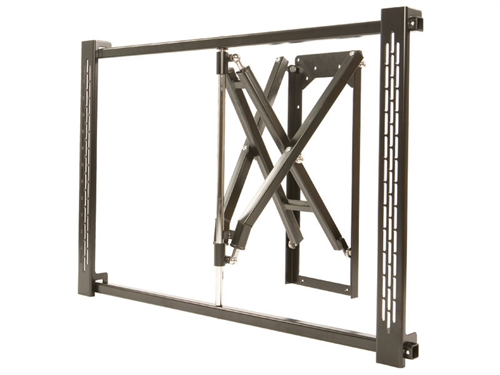

Sharp LC-80UE30U Precision Crafted Swivel Wall Mounting Bracket
Sharp LC-80UE30U Swivel Wall Bracket - Future Automation PS60



Alternative Views:
Our Price: $1,200.00


Availability:: Usually Ships in 2 to 3 Weeks
Product Code: FA-PS60-SHARP-LC-80UE30U

Description

This Super Smooth Precision Crafted Bracket allows Samsung LC-80UE30U HD TVs to be moved smoothly and easily in either direction. The PS Bracket allows perfect parallel movement and the freedom and flexibility to view your Sharp LC-80UE30U flat screen in a variety of positions, for the ultimate viewing experience. Perfect for recessing in walls for a completely flush finish.
  • Unique Scissor Design allows easy one handed operation
  • Solid Steel Construction Holds Screen Securely
  • Bi-Directional Swivel up to 45 degrees in either direction
  • 264lb capacity

Note: Please allow 2 -3 weeks for custom building time.
Features
Fits Sharp Model: LC-80UE30U
Fits TV types: Flat Screen LED, LCD and Plasma
Weight capacity: 264.55 lbs (119.7kg)

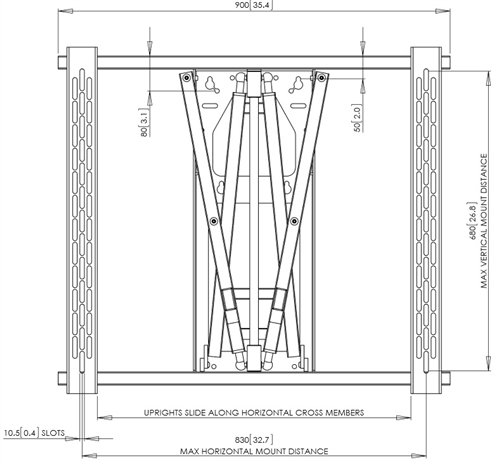

Max mounting pattern: 830x680mm (32.7" x 26.8")
VESA mounting patterns: 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 500x200mm, 500x300mm, 500x400mm, 600x200mm, 600x300mm, 600x400mm, 660x330mm, 800x200mm, 800x400mm
Minimum Extension 3.1" (78.7mm)

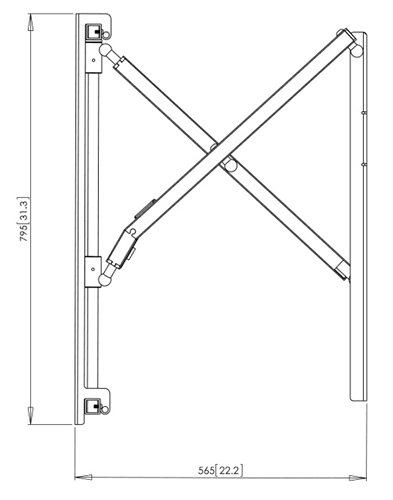

Maximum Extension: 22.2" (563.8mm)

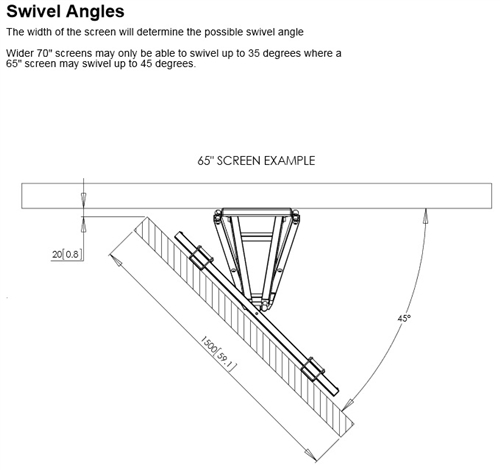

Swivel: +45/45° degrees (left/right)
Tilt: None
Mounting surface: wood joist, structural wood or structural concrete
Mounting: Custom Plate
Wall Plate dimensions: 11.0" w x 28.1" h (279mm x 715mm)
Construction: high-grade cold rolled steel
Product finish: scratch resistant epoxy powder coat
Color: Black
Mounting Hardware Included: Yes
