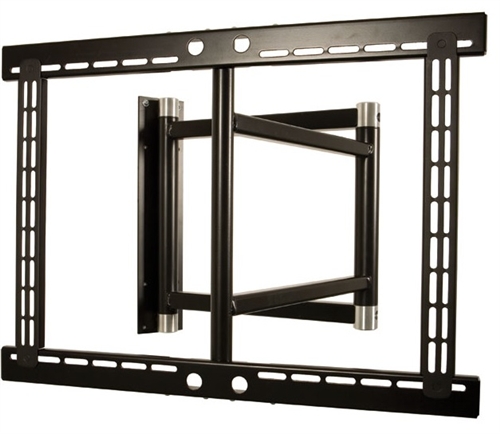

Double Arm Swivel TV Bracket for 50" - 65" (Extends 54.1")

Custom made 54 inch extension flat screen monitor bracket



Alternative Views:


Custom made to Order
Our Price: $2,500.00


Availability:: Usually Ships in 4 to 6 Weeks
Product Code: FA-DA-54EXTENSION

Color

Choose:



Description


Wall Mount Overview

This Double Arm bracket is a custom made to order manual 50" - 65" TV swivel bracket that allows a screen to be pulled forward and rotated over 90 degrees in either direction. The mount is the ideal problem solver when typical brackets will not work. Our custom department will customize the length of each arm to ensure the solution offered exactly matches the criteria of the installation.

Solid steel construction holds display securely
Bi-Directional Swivel (left/right) up to over 90 degrees in either direction depending on needs
Brushed Aluminum caps for superb aesthetic finish
Landscape orientation
Any color of arms available upon request at additional charge
Note: Please allow 4-6 weeks for custom building time.
Additional Notes:
1.Due to extreme extension you can expect the bracket to have some sag. The wall has to structurally reinforced for the load being applied due to long extension and weight of the TV.
2. The wall plate dimensions are 17.2" w x 26.8" h (436mm x 680mm)

3. The TV will have an offset of 12.8" from center of wall plate when collapsed back to wall.

Warning: End user and installer are responsible for mounting the bracket to a structure that can support the force applied by the weight of the TV on the mount being folded against wall or extended. Attach it to structure that will not allow pullout of mounting hardware for the wall plate to the structure it is attached to. Wall Mount World nor the manufacturer is responsible for the mounting or installation of the product and any equipment attached to the mount to the structure it is attached to in the event of failure.
Features

Technical Description

Custom Made Precision Crafted
Fits TV size range from 50" - 65"
Fits TV types Flat Screen LED, LCD and Plasma
Landscape orientation
110.2 lbs (50.03kg) Weight capacity
Max mounting pattern 600x400mm
VESA mounting patterns 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 500x200mm, 500x300mm, 500x400mm, 600x200mm, 600,300mm, 600x400mm
4.1" (105mm) Minimum Extension
54.1" (1374.1mm) Maximum Extension
90 degree swivel both left and right
12.8" Offset from center of wall plate when collapsed
Non-tilting
Mounting surface custom wall structure 16" centers to support load. wood joist, structural wood or structural concrete
TV offset 12.8" (326mm) offset from wall plate center to TV center when closed to wall
Wall Plate Dimensions 26.8" H x 17.2" W
Mount width collapsed 43.1" (1095mm)
Product finish high-grade cold rolled steel, scratch resistant epoxy powder coat
Color option Black or White
Mounting Hardware Included

Average Customer Review: Average Customer Review: 5 of 5 5 of 5 Total Reviews: 1 Write a review.

  0 of 0 people found the following review helpful:

5 of 5 Excellent Mount December 5, 2016
Reviewer: Ron P from Fort Lauderdale, FL United States
This is my 2nd double arm swivel TV bracket from Wall Mount World.  Works perfectly and extremely strong for my 65" curved samsung TVs'.  People are amazed by the extension and swivel feature.  It's amazingly strong and well made.
