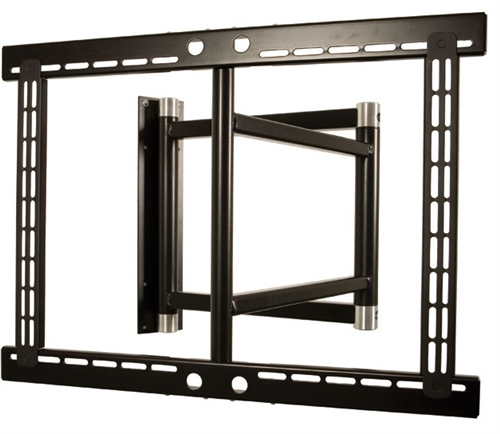

39.3in Extension Swivel TV Bracket for RCA LED52B45RQ

Double Arm Swivel TV Bracket for RCA LED52B45RQ

Alternative Views:

Our Price: $1,540.00

Availability:: Usually Ships in 2 to 3 Weeks
Product Code: FA-DA-39EXT-RCA-LED52B45RQ

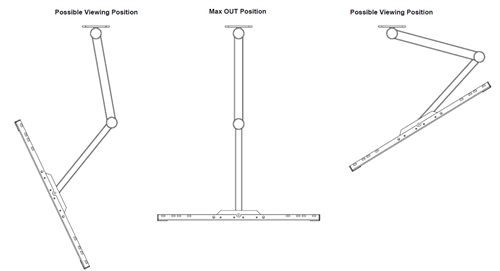

This extreme Double Arm bracket is a custom made to order for RCA LED52B45RQ TVs and allows the screen to be pulled forward 39.3" and swiveled 90 degrees in either direction left or right. This Double Arm TV Bracket is the ideal problem solver when typical brackets will not work. Our custom department will customize the length of each arm to ensure the solution offered exactly matches the criteria of the installation.
  • Solid steel construction holds display securely
  • Bi-Directional Swivel up to over 90 degrees in either direction depending on needs

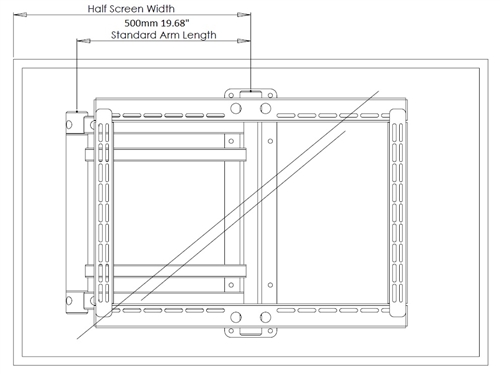

  • Custom cut arms to any length up to 500mm per arm

Note: Please allow 2 -3 weeks for custom building time.

Fits RCA Model: LED52B45RQ
Custom made: Yes
Weight capacity: 110.2 lbs (50.03kg)
Max mounting pattern: 400x400mm
VESA mounting patterns: 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm
Minimum Extension 4.1" (105mm)
Maximum Extension: 39.3" (998.2mm)
Swivel: +90/90 degrees (left/right)
Tilt: None
Mounting surface: wood joist, structural wood or structural concrete
Mounting: single stud
Wall Plate Dimensions: 8.7" w x 26.4" h
Construction: high-grade cold rolled steel
Product finish: scratch resistant epoxy powder coat
Color: Black, White
Mounting Hardware Included: Yes
