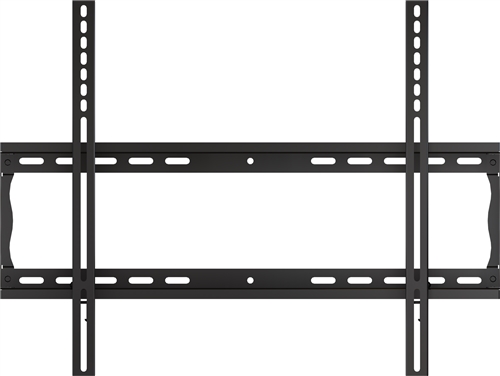

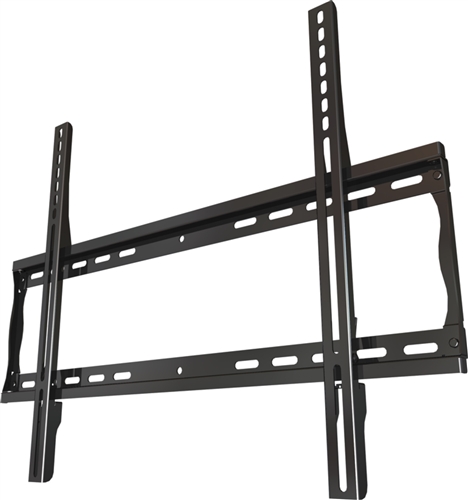

Low Profile Flat Wall Mount Bracket fits TCL 55S551F
TCL v Low profile flat wall mount bracket fits 32 in to 55 in displays has depth of 1.2 inch from wall 200 lb capacity

Alternative Views:
Our Price: $115.00


Availability:: Usually Ships in 24 to 48 Hours
Product Code: C-FLAT-TCL-55S551F

Description


Wall Mount Overview

This low profile fixed position wall mount bracket fits TCL 55S551F 55" S5 Series TVs. Making a secure installation quick and easy, simply hang your flat panel onto the wall plate and turn the pre-assembled securing screw to lock in place.
Features

Technical Description

Fits 32"- 55" flat panels screens
200 lbs (91kg) Weight capacity
Flat fixed position
Max VESA pattern 660x501mm
Fits VESA hole mounting patterns 75x75mm, 100x100mm, 200x100mm, 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm, 500x300mm, 600x200mm, 600x400mm, 660x330mm
1.2” (30mm) Depth from wall
Lateral adjustment varies with screen size
Mounting surface wood stud, concrete, cinder block or metal stud (accessory required)
Stud spacing dual studs 16”, 20 and 24" centers
High-grade cold rolled steel construction

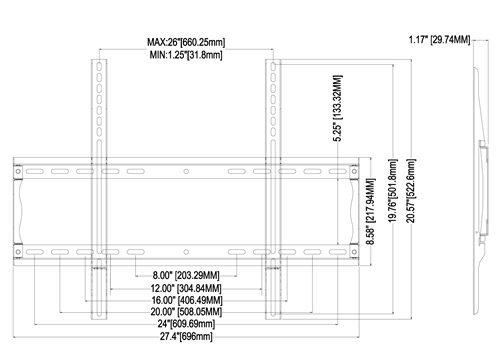

Wall plate dimensions 27.4" x 8.5" (696mm x 217.9mm)
Package contents wall plate, vertical arms, instructions, assorted bolts and screws
Color black
Warranty 10-years
