Future Automation LS4M Motorized cabinet Lift TV Bracket 42" - 50"

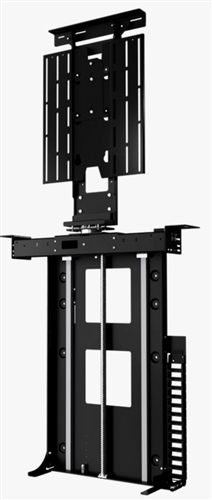

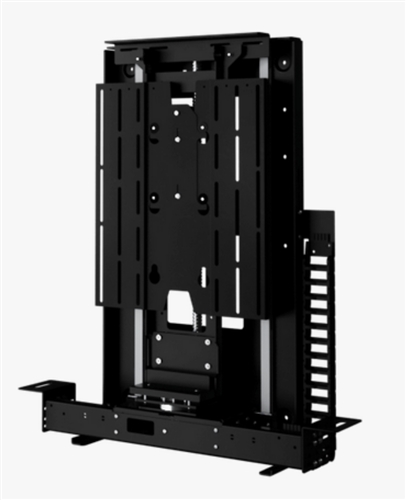

Future Automation LS4M Motorized TV Actuator Lift Bracket

Alternative Views:
Cabinet and Lid Not Included
Our Price: $4,450.00


Availability:: Usually Ships in 24 to 72 Hours
Product Code: FA-LSM4

Description Technical Drawings, Manuals and Videos


Motorized Lift Overview

This Future Automation LSM4 motorized lift mechanism is ideal for concealing screens from approximately 42" to 50" in a cabinet or similar space. Compatible with all major home automation control standards, such as Crestron, AMX and Lutron, the LSM range is perfect for integrating into a smart home environment.

Cabinet and Lid Not Included.
Features

Technical Description

Fits 42" - 50" displays
VESA 200x200mm - 400x400mm
110 lbs (55kg) Residential max weight capacity
66 lbs (30kg) Marine max weight capacity

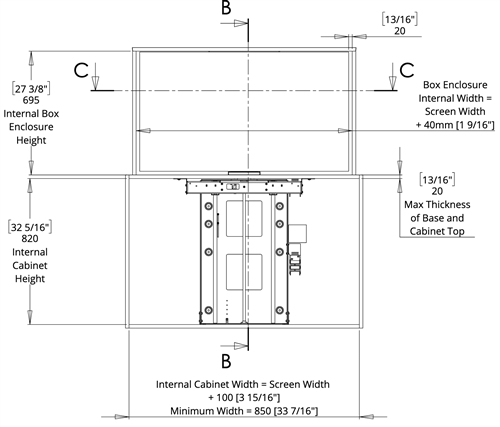

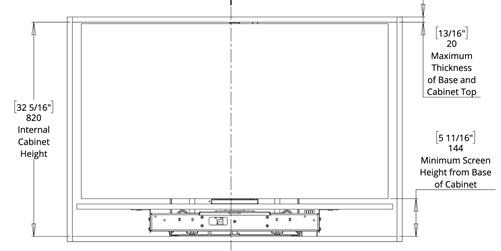

Max Screen Height 26-3/8" (670mm)
Internal cabinet height 32-5/16" (820mm)
Internal cabinet width: Screen width + 2-3/8"
Maximum cabinet lid thickness 13/16" (20mm)
Control Options Contact Closure, IR, RS232
Movement Type Motorized
Power Supply 110V or 240
Power Consumption: 250W - 500W
Cabinet and Lid not included
Color Black
Instructions Included Yes
