Future Automation PLF-BE In Floor Lift for 32" - 85" Displays
Future Automation PLF-BE Cabinet Lift

Alternative Views:
, 0); font-size: 18px;">Custom made to order
Please specify TV make and model on order comments
Our Price: $20,938.00


Availability:: Custom Made 12-14 Weeks
Product Code: FA-MOTORIZED-LIFT-PLF-BE

Mount Installation

Prior to purchase consult a Professional contactor or installer for possible wall modifications.


Description


Motorized Cabinet Lift Overview

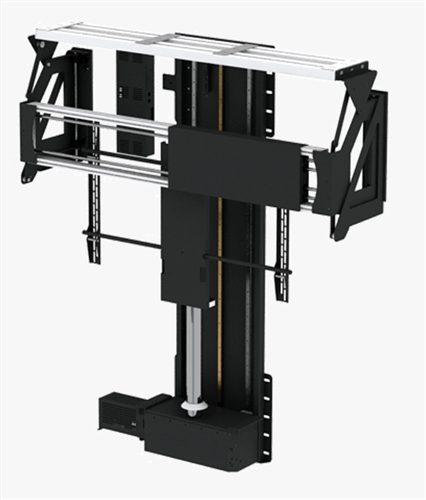

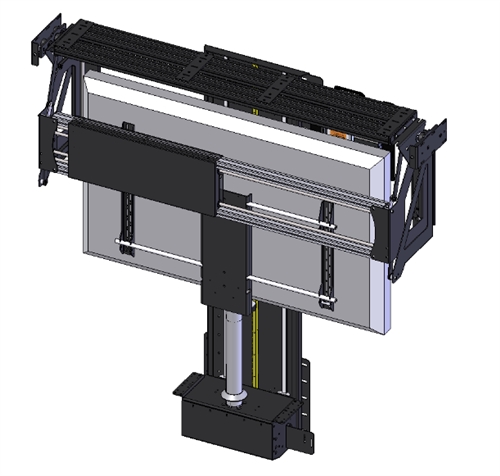

This custom made Future Automation PLF-BE TV in floor Lift mechanism is a custom designed mechanism that allows a 32" - 85" flat screen to be stored in a floor out of sight.The unique walk over flap mechanism allows for a seamless transformation from the concealed to the revealed.As smooth as it is strong, the TV Floor Lift offers an unrivaled amount of wow factor for when only the most elaborate automation will do.

Unique walk on drop and roll flap mechanism
Full Cable Management
Custom sized to suit exact size of screen
Accurate and smooth guide system

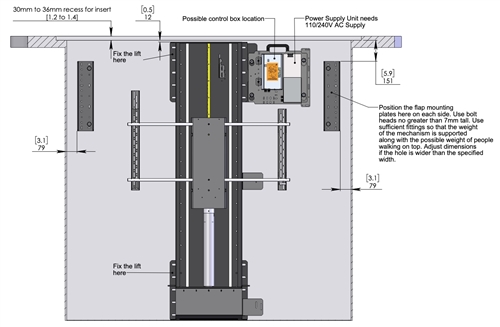

Safety Warning: A fully waterproof floor recess is required to install the mechanism.

Features

Technical Description

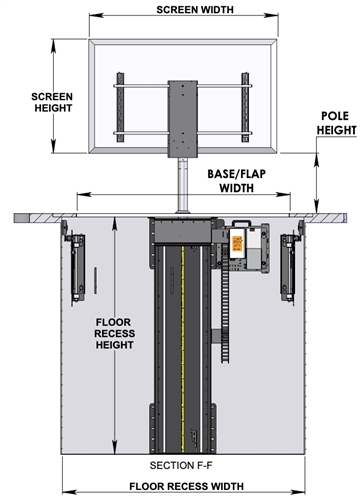

Fits 32" - 85" displays
Pole height 16.9" (500mm)
Max Screen Height 26.6" (675mm)
265 lbs (120kg) Max Lift Capacity Residential Use
Internal Cabinet Height based on TV make and Model
Control Options Contact Closure, IR, RS232
Power Supply 110V or 240
Control Unit 110V or 240
Power Consumption: 250W - 500W
Cabinet and Lid Not Included
Color Black
Instructions Included Yes
