Future Automation I-LSM-TU-4 Inverted Lift with Telescope for 40" - 50" TVs

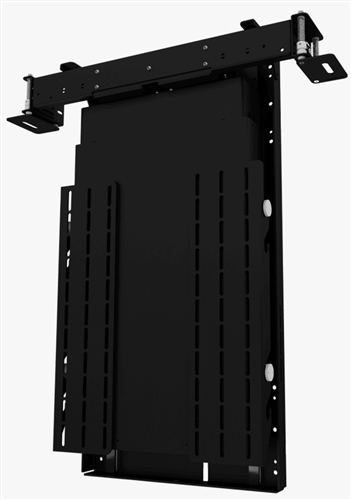

Future Automation I-LSM-TU-4 Inverted Ceiling Lift

Alternative Views:
Our Price: $11,450.00


Availability:: Lead Time 10 Weeks
Product Code: FA-I-LSM-TU-4--INVERTED-LIFT

Description

This custom made Future Automation I-LSM-TU-4 TV lift is a compact inverted lift mechanism with extra height telescope capability, designed to house screens ranging between 40" - 50", with a fixed panel lid.
The telescope allows the lift to lower the screen more than standard without any extra installation height. The fixed panel bracket allows a ceiling panel to be attached to the lift to blend in with the surrounding area when the display is hidden.

Quiet and Smooth Action
Full Cable Management
Wide Range of Mounting Options
Robust lifting beam
Also has switch control and RS232 so can be operated by relays, switches, Crestron, AMX or Lutron systems


Note: Please note the EFA, electric flap actuator is no longer available, this would be a fixed panel attached under the screen.
Features
Fits 40" - 50" TVs
66lb (30kg) lifting capacity
Fits VESA 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm
2.4" (60mm) maximum screen depth
26.8" (680mm) Max screen height
45.2" (11471310mm) Maximum travel

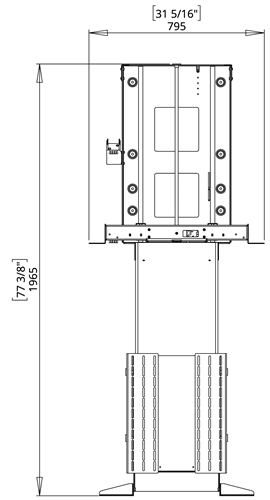

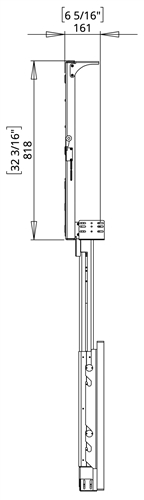

Bracket dimensions 32 5/16" H x 32 5/16" W x 6 5/16" D
Power supply required 110V - 240V AC
Power consumption 250 - 500W
Power consumption standby 3W
RS232 - Contact Closure - IR (RF Available)
