Precision Crafted 23.4in Ext Swivel Bracket for 65" - 75" TVs

Precision Crafted Universal Swivel TV Bracket for 75 inch flat Panels swivels 43 degrees left right with 132 lb capacity



Alternative Views:


Our Price: $1,100.00


Availability:: Usually Ships in 1 to 2 Weeks
Product Code: FA-75INCH

Description


Wall Mount Overview

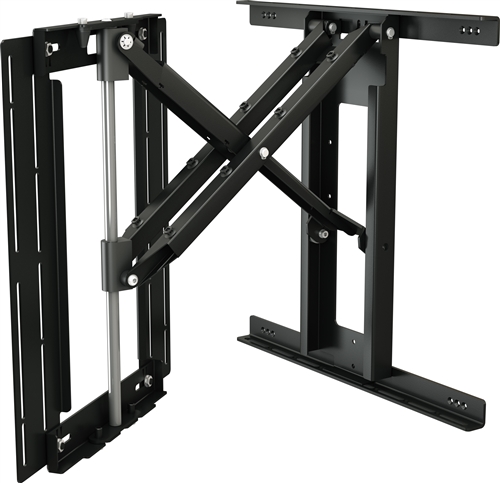

This super smooth precision crafted wall bracket allows 65" - 75" flat screens to be moved smoothly and easily in either direction. The bracket allows perfect parallel movement and the freedom and flexibility to view your flat screen in a variety of positions, for the ultimate viewing experience. Perfect for recessing screens in walls for a completely flush finish. Unique scissor design allows easy one handed operation.

Solid Steel Construction Holds Screen Securely
Bi-Directional Swivel up to 43 degrees in either direction
132 lb capacity

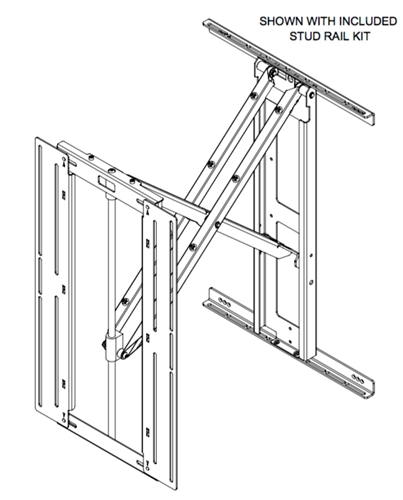

16” stud bay mounting kit included for twin stud mounting, with horizontal bracket offset possible

Features

Technical Descriptions

Fits most 65" - 75" displays
Landscape orientation
132 lbs (119.7kg) Weight capacity

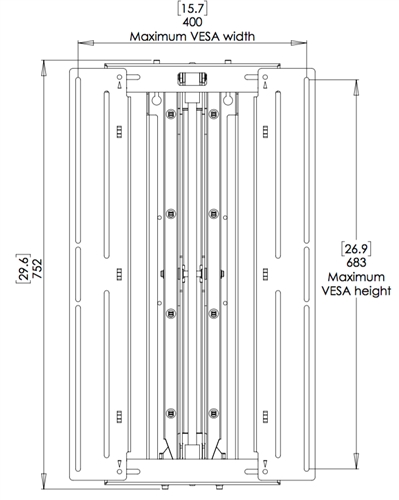

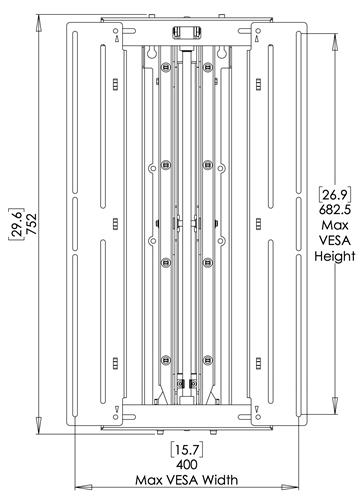

Max mounting pattern 685x490mm (27.0" x 19.3")
VESA mounting patterns 200x200mm, 300x200mm, 300x300mm, 400x200mm, 400x300mm, 400x400mm
2.0" (52mm) Minimum Extension
23.4 (530mm) Maximum Extension

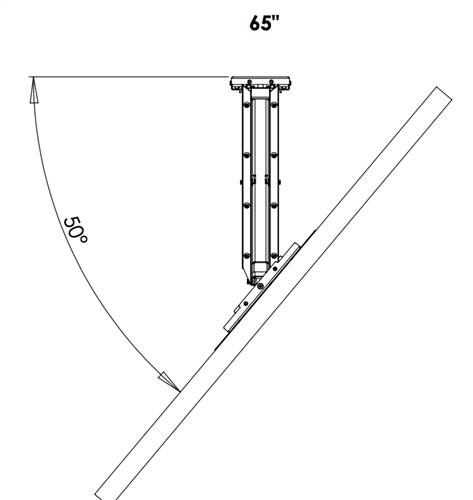

Swivels 65" TV 50 degrees

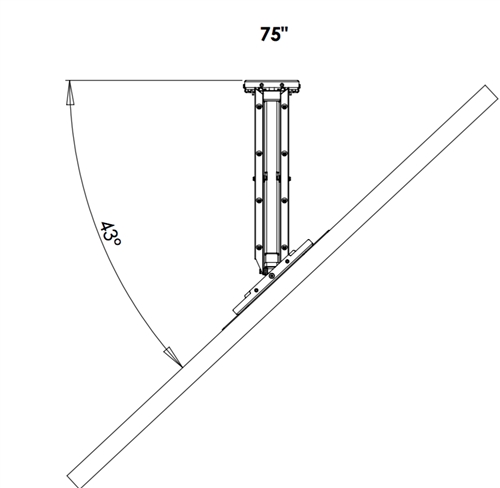

Swivels 75" Tv 43 degrees
Tilt None
Mounting surface wood joist, structural wood or structural concrete
Fits studs 16 inch on center

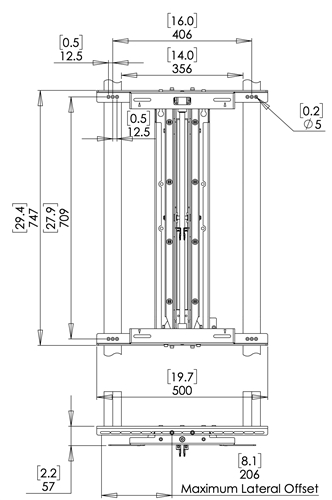

Wall Plate dimensions 19.7" w x 29.4" h
Construction high-grade cold rolled steel
Product finish scratch resistant epoxy powder coat
Color Black
